| Brand Name: | Seacent |
| Model Number: | AWG Chip |
| MOQ: | 10 pieces |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 100,0000 pieces per month |

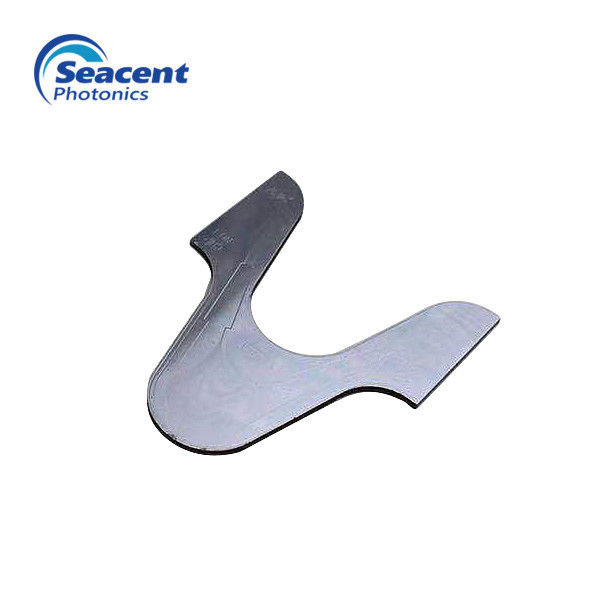

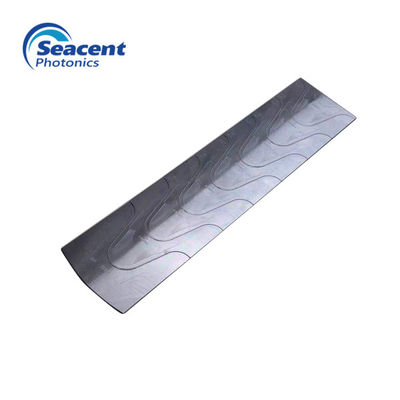

100Ghz AWG Chip C-band distance between 100Ghz good uniformity
Description:
The Arrayed Waveguide Grating's another name is AWG. It uses the WDM-PON. This is one-to-one method of manual optical transmission product by high-speed transmission. The method is transmitting mass storage signal of image, telephone and data etc. used just a one line of optical by divided 16, 32 members at same time. And also, it used in the China and India those are not enough optical communication facilities. Furthermore, where were need long distance transmission area.
Specifications:
|
C-band distance between 100Ghz |
|||
|
parameter |
unit |
Gaussian |
Flat top |
|
Wavelength accuracy |
nm |
±0.04 |
±0.04 |
|
Full 1dB bandwidth |
nm |
＞0.2 |
＞0.4 |
|
Full 3 dB bandwidth |
nm |
＞0.4 |
＞0.6 |
|
Optical insertion loss |
dB |
3.5 |
4.5 |
|
Loss uniformity |
dB |
1.2 |
1.2 |
|
Adjacent channel crosstalk |
dB |
27.0 |
27.0 |
|
Non-adjacent channel crosstalk |
dB |
30.0 |
30.0 |
|
Optical return loss |
dB |
＞40 |
＞40 |
|
Polarization loss |
dB |
＜0.5 |
＜0.5 |
|
size |
mm |
＜37.8x＜32.5(Square,Curve type) |
|
|
Operating temperature |
℃ |
-40- 85 |
|
|
|
