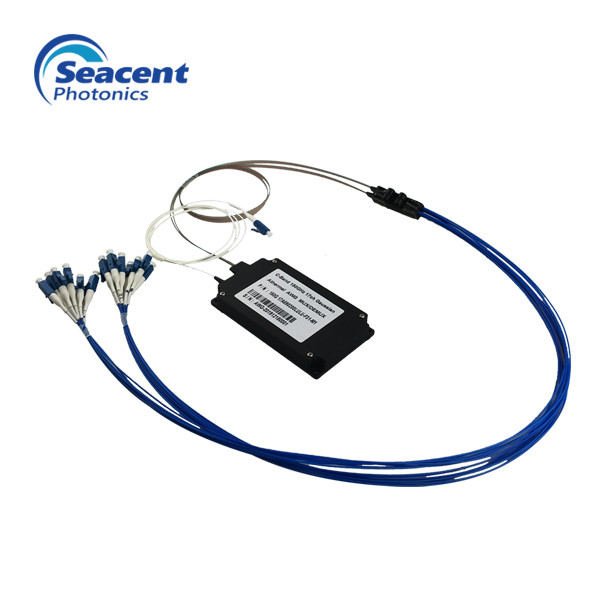

150GHZ Passive Optical Module Mux Athermal AWG Mux Demux Low Crosstalk

Name: 150GHZ Passive Optical Module Mux Athermal AWG Mux Demux Low Crosstalk
Brand: Seacent
SKU: AAWG-17CH 150GHZ
Rating: 4.5 (164 reviews)

Brand Name:	Seacent
Model Number:	AAWG-17CH 150GHZ
MOQ:	1
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

ISO9001,ROHS

Product Name:

AAWG DWDM Mux

Connector:

LC/UPC,LC,ST,FC,SC

Color:

Black,Blue,Orange,White

Channel:

17CH,40CH,48CH,80CH,96CH Or Customized

Return Loss:

≤ 40

Logo:

Can Be Customized

Application:

Metro And Long Haul Network,FTTH FTTB FTTX Network,Telecommunication

High Light:

awg arrayed waveguide grating

optical mux demux

Product Description

150GHZ Passive Optical Module Mux Athermal AWG Mux Demux Low Crosstalk

Description:

This kind of Athermal AWG (Arrayed Waveguide Grating) is a high performance DWDM mux/demux device operating on 100GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths.

Athermal Arrayed Waveguide Grating (Athermal AWG) has equivalent performance to standard AWGs but requires no electrical power for stabilization. Athermal AWGs can be used as direct replacements for Thin Film Filters for cases where no power is available at the shelf and they can also be used outdoors over -30ºC to +70ºC in access applications, extending the cost performance benefits of AWGs.

Our thermalization technology simplifies the deployment of AWG multiplexers/demultiplexers by DWDM network providers.

Technical Parameters

Parameter		Unit	Value
Pass Band Type		-	Flat-top	Gaussian
Channel Spacing		GHz	100
Channel Number		CH	48/40
Wavelength Accuracy		nm	±0.05
1dB Pass Band		nm	≥0.38	≥0.2
3dB Pass Band		nm	≥0.58	≥0.4
Insertion Loss1		dB	≤6.0 Typ.4.5	≤3.5 Typ.2.8
Ripple		dB	≤0.5	≤1.5
Uniformity		dB	≤1.5	≤1.5
Adjacent Crosstalk		dB	≥23	≥26
Non-adjacent Crosstalk		dB	≥29	≥35
Total Crosstalk		dB	≥21
Polarization Dependent Loss(PDL)		dB	≤0.5 Typ.0.25	≤0.7 Typ.0.35
PMD2		ps	≤0.5
Chromatic Dispersion2		ps/nm	±20
Return Loss		dB	≥40
Fiber	Input Port	mm	Φ0.9
	Output Ribbon	-	-
	Fan Out	mm	Φ0.9
Operation Temperature		℃	-5～+65
Storage Temperature		℃	-40～+85
Package		mm	120×70×11

Notes:

1. All specifications are based on the devices without connectors and guaranteed over wavelength, polarization, and temperature.

2. PMD and chromatic dispersion values are guaranteed by design.

Features:

Flat-top Passband
Fully Passive Module
Low Crosstalk
High Uniformity
Low Insertion Loss & PDL
40 Channels x 100GHz Mux/Demux
Operating Temperature Range from -5ºC to 65ºC
No Electronics Required; Compact Footprint
Telcordia GR-1209/GR-1221 Qualified.

Application:

WDM based ADM
WDM transmission
Metro and long haul networks
Optical signal processing

Tags:

athermal awg

awg arrayed waveguide grating

optical mux demux
