96 Channel Athermal AWG Mux Demux For Real - Time Line Monitoring System
96 Channel Athermal AWG Mux Demux For Real - Time Line Monitoring System 96 Channel Athermal AWG Mux Demux For Real - Time Line Monitoring System 96 Channel Athermal AWG Mux Demux For Real - Time Line Monitoring System 96 Channel Athermal AWG Mux Demux For Real - Time Line Monitoring System
Contact Now

96 Channel Athermal AWG Mux Demux For Real - Time Line Monitoring System

Minimum Order Quantity : 1 Delivery Time : 5-8 work days
Payment Terms : L/C, T/T
Place of Origin: Guangdong,China Brand Name: Seacent
Certification: ISO9001,ROHS Model Number: AAWG-96CH 50GHZ

Detail Information
Fiber Type: 900um Loose Tube,Corning SMF-28e,Dual Fiber,SMF,Common G657A Fiber With 900mm Loose Tube Package: 19'' Rack Mount,Module/Rack,LGX,ABS,1U Rackmount
Warranty: 3 Years Channels: 17CH,40CH,48CH,96CH Or Customized
Connector: LC/UPC,LC,ST,FC,SC Color: Black,Blue,Orange,White
High Light:

athermal awg

,

awg arrayed waveguide grating

Product Description

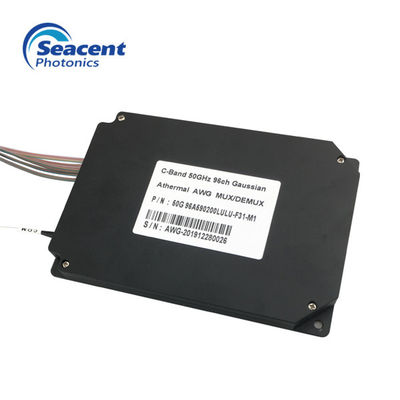

Low cost 50GHZ 96CH AAWG Wavelength Division Multiplexer Demultiplexer

Description:

Athermal AWG (AAWG) have equivalent performance to standard Thermal AWG(TAWG) but require no electrical power for stabilization. They can be used as direct replacements for Thin Film Filters(Filter type DWDM module) for cases where no power is available, also suitable for outdoor applications over -30 to +70 degree in access networks.

Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics. These AWGs offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package.

Technical Parameters
Parameter unit Flat top Gaussian Flat top Gaussian
Number of channels   16/32/40/48 80/88/96
Channel spacing Ghz 50 50
Channel frequency Thz Blue band=1528.773~1547.316 C band=1526.827~1564.679
Red band=1545.720~1564.679
Wavelength accuracy nm ±0.05 ±0.05 ±0.05 ±0.05
1db bandwidth nm >0.18 >0.12 >0.18 >0.12
3db bandwidth nm >0.28 >0.20 >0.28 >0.20
Insertion loss (passband) dB <4.5 <3.7 <5.5 <4.5
Adjacent channel crosstalk dB >27 >27
Non-adjacent channel crosstalk dB >30 >30
Total crosstalk dB >24 >24
Insertion loss uniformity dB <1.2 <1.5
Polarization loss dB <0.5 <0.5 <0.5 <0.5
Return loss dB >40
Dispersion ps/nm ±10
Operating temperature ºC -20~70
Size (length * width * height) mm 120*70*12.3 130*90*11.3

Features:

  • Low Insertion Loss,Low PDL,High Channel Isolation
  • Mass production
  • Compact package
  • Dense wavelength division multiplexing system
  • Wide wavelength range
  • Realize upstream and downstream dual-frequency band by using single-chip microcomputer

Application:
  • Real-time line monitoring system
  • CATV, FTTH, ROADM, LAN, WAN system
  • Signal, network monitoring

Business advantage

Product:

(1) High reliability, high stability, small size, low insertion loss

(2) 1*N 2*N multiple channel forms

(3) 1260-1650nm full-band operation

(4) Industrial working environment: -40 ° C - + 85 ° C

(5) ISO9001-2015 quality system, Telcordia GR-1209-CORE, GR-1221-CORE standard certificate

(6) Customization: can be customized according to customer requirements

(7) Product process: industry leading



Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners




Tag:

athermal awg

awg arrayed waveguide grating

optical mux demux
