FTTH System Passive AAWG Module 100GHZ 48 Channel Mux Low Insertion Loss

Minimum Order Quantity : 1 Delivery Time : 5-8 work days
Payment Terms : L/C, T/T
Place of Origin: Guangdong,China Brand Name: Seacent
Certification: ISO9001,ROHS Model Number: AAWG-48CH 100GHZ

Detail Information

Fiber Type: 900um Loose Tube,corning SMF-28e,dual Fiber,SMF,common G657A Fiber With 900um Loose Tube Channels: 17CH,40CH,48CH,80CH,96CH Or Customized
Operating Temperature: -90℃ Name: AAWG
Application: DWDM System Size: 120x70x12.3 / 85x58x113mm
High Light:

awg arrayed waveguide grating

,

optical mux demux

Product Description

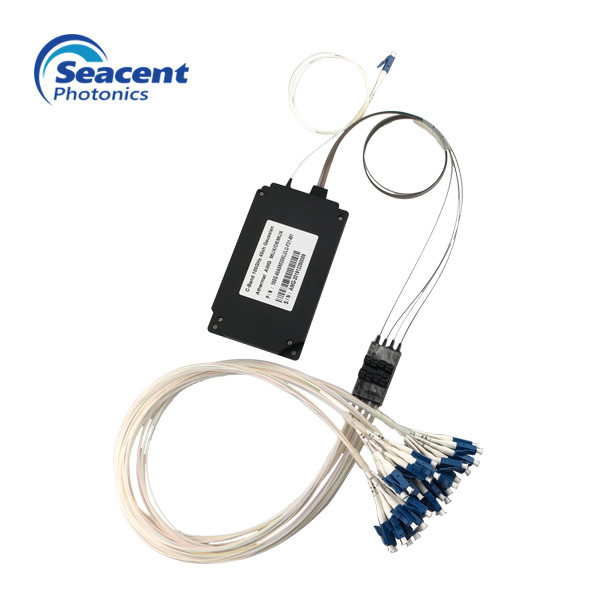

Athermal AWG 48CH 100GHZ Athermal Arrayed Waveguide Grating
Description:

Athermal Arrayed Waveguide Grating (Athermal AWG) has equivalent performance to standard AWGs but requires no electrical power for stabilization. Athermal AWGs can be used as direct replacements for Thin Film Filters for cases where no power is available at the shelf and they can also be used outdoors over -30ºC to +70ºC in access applications, extending the cost performance benefits of AWGs.



The arrayed waveguide particles used in wavelength division multiplexing (WDM-PON) are also referred to as AWGs.This is a method of using a high-speed transmission of a manual optical transmission product. For the transmission method of large-capacity storage signals such as images, telephones, and data, it is only necessary to divide 16 or 32 members into one line of light at the same time. There are also applications in areas that require long-distance transmission.



Features:
  • Compact package
  • Dense wavelength division multiplexing system
  • Low cost, mass production
  • Realize upstream and downstream dual-frequency band by using single-chip microcomputer

Application:
  • CATV, FTTH, ROADM, LAN, WAN system
  • Signal, network monitoring, real-time line monitoring system
  • Technical Parameters



Technical Parameters

Parameter unit 100Ghz spacing 100Ghz spacing
Gaussian Flat top Gaussian Flat top
Wavelength accuracy nm ±0.05 ±0.05 ±0.07 ±0.07
Full 1dB bandwidth nm >0.2 >0.4 >0.4 >0.7
Full 3 dB bandwidth nm >0.4 >0.6 >0.7 >1.0
Optical insertion loss dB 3.7 4.5 3.7 4.5
Loss uniformity dB 1 1 0.8 0.8
Adjacent channel crosstalk dB 27 27 28 28
Non-adjacent channel crosstalk dB 30 30 30 30
Optical return loss dB >40 >40 >40 >40
Polarization loss dB <0.5 <0.5 <0.5 <0.5
size mm 120x70x12.3 / 85x58x113
Operating temperature -90





Business advantage

Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners
