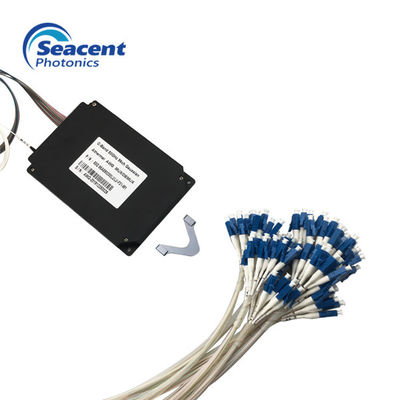

Low cost 50GHZ 96CH AAWG Wavelength Division Multiplexer Demultiplexer

Description:



Athermal AWG (AAWG) have equivalent performance to standard Thermal AWG(TAWG) but require no electrical power for stabilization. They can be used as direct replacements for Thin Film Filters(Filter type DWDM module) for cases where no power is available, also suitable for outdoor applications over -30 to +70 degree in access networks.

Technical Parameters
Parameter unit Flat top Gaussian Flat top Gaussian
Number of channels   16/32/40/48 80/88/96
Channel spacing Ghz 50 50
Channel frequency Thz Blue band=1528.773~1547.316 C band=1526.827~1564.679
Red band=1545.720~1564.679
Wavelength accuracy nm ±0.05 ±0.05 ±0.05 ±0.05
1db bandwidth nm >0.18 >0.12 >0.18 >0.12
3db bandwidth nm >0.28 >0.20 >0.28 >0.20
Insertion loss (passband) dB <4.5 <3.7 <5.5 <4.5
Adjacent channel crosstalk dB >27 >27
Non-adjacent channel crosstalk dB >30 >30
Total crosstalk dB >24 >24
Insertion loss uniformity dB <1.2 <1.5
Polarization loss dB <0.5 <0.5 <0.5 <0.5
Return loss dB >40
Dispersion ps/nm ±10
Operating temperature ºC -20~70
Size (length * width * height) mm 120*70*12.3 130*90*11.3

Features:

  • Low Insertion Loss,Low PDL,High Channel Isolation
  • Mass production
  • Compact package
  • MUX/DEMUX Functionality
  • Athermal Design, Electrical Power is Not Required
  • Dense wavelength division multiplexing system
  • Realize upstream and downstream dual-frequency band by using single-chip microcomputer

Application:
  • Real-time line monitoring system
  • CATV, FTTH, RO
  • ADM, LAN, WAN system
  • Signal, network monitoring
  • GPON, EPON
Business advantage



Product:

(1) High reliability, high stability, small size, low insertion loss

(2) 1*N 2*N multiple channel forms

(3) 1260-1650nm full-band operation

(4) Industrial working environment: -40 ° C - + 85 ° C

(5) ISO9001-2015 quality system, Telcordia GR-1209-CORE, GR-1221-CORE standard certificate

(6) Customization: can be customized according to customer requirements

(7) Product process: industry leading



Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners
