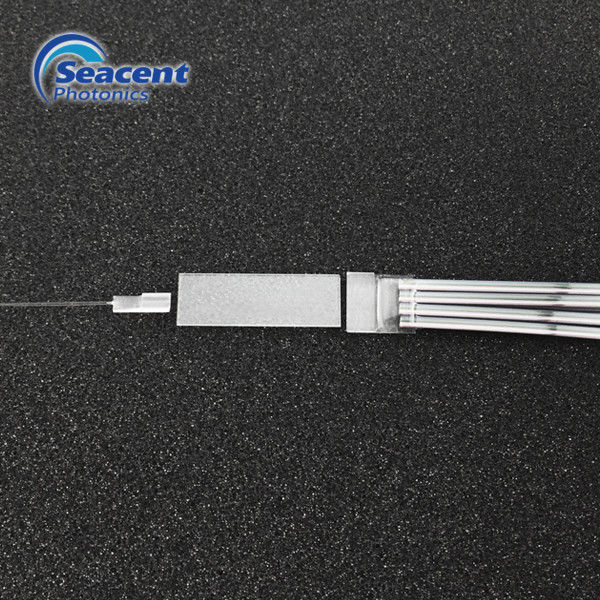

Durable 1X16 PLC Splitter Chip For Fiber Optic Equipment And Systems
Description:
Planar Lightwave Circuit splitter chips are based on Photolithography masking technology to divide the optical power from one or two input port(s) to multiple output ports by Planar Lightwave Circuit technology. Splitter chips offer high optical performance, high stability and reliability, as one of key parts for PLC splitter.
PLC Splitter Chip is a main part of PON system to cover many demanders for receiving light signals at the same time by distributing delivered light signals into N number. In addition, Splitter Chip can be operated reverse direction with combination of one or two optical fiber(s).
PLC Splitter Chip Features:
PLC Splitter Chip application areas:
Technical parameters: 1XN chip
|
parameter |
1X2 |
1X3 |
1X4 |
1X6 |
1X8 |
1X12 |
1X16 |
1X24 |
1X32 |
1X48 |
1X64 |
1X128 |
|
Working wavelength (nm) |
1260-1650 |
|||||||||||
|
Insertion loss (dB) |
3.5 |
5.8 |
6.7 |
8.8 |
9.8 |
11.8 |
12.9 |
15.1 |
16.2 |
18.4 |
19.5 |
22.5 |
|
Uniformity (dB) |
≤0.3 |
≤0.5 |
≤0.5 |
≤0.6 |
≤0.6 |
≤0.8 |
≤0.8 |
≤1.1 |
≤1.0 |
≤1.2 |
≤1.2 |
≤1.5 |
|
PDL (dB) |
≤0.12 |
≤0.12 |
≤0.12 |
≤0.12 |
≤0.15 |
≤0.15 |
≤0.15 |
≤0.15 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.3 |
Technical parameters:2XN chip
| parameter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | 2X128 |
| Working wavelength (nm) | 1260-1650 | ||||||
| Insertion loss (dB) | 3.7 | 7.0 | 10.2 | 13.5 | 16.7 | 20.0 | 22.8 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.2 | ≤1.2 | ≤1.8 | ≤2.0 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 |
Ordering Information:
|
product type |
Wafer size |
1XN chip size (mm) |
2XN chip size (mm) |
|
1XN或2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
1=6 Inch |
1x2 = 2.3x2.0x9.6 1x3 =2.3x2.0x9.6 1x4 = 2.3x2.0x9.6 1x5 =2.3x2.0x9.9 1x7 =2.3x2.0x9.9 1x8 = 2.3x2.0x9.9 1x12 = 2.3x2.0x14.7 1x16 = 2.65x2.0x13.3 1x24 = 3.9x2.0x20.3 1x32 =4.7x2.0x16.9 1x64 =8.85x2.0x22.0 1x128=17.0x2.0x27.6 |
2x2 = 2.3x2.0x10.9 2x4 = 2.3x2.0x14.0 2x8 = 2.3x2.0x15.0 2x16 = 2.7x2.0x18.3 2x32 =4.7x2.0x21.8 2x64 =8.85x2.0x26.8 2x128=17.0x2.0x32.8 |
Business advantage
Service:
(1) Experience in serving large customers for more than 8 years
(2) Independently provide product solutions and packaging solutions for customers
(3) Have strong strategic partners
Technology:
(1) Professionally engaged in high-precision packaging production of optical devices for 15 years
(2) 15 years of technical team
(3) Have their own core technology
Research and development:
(1) Adhere to 5% of annual sales as technology research and innovation expenses
(2) Independent development chip
|
|
