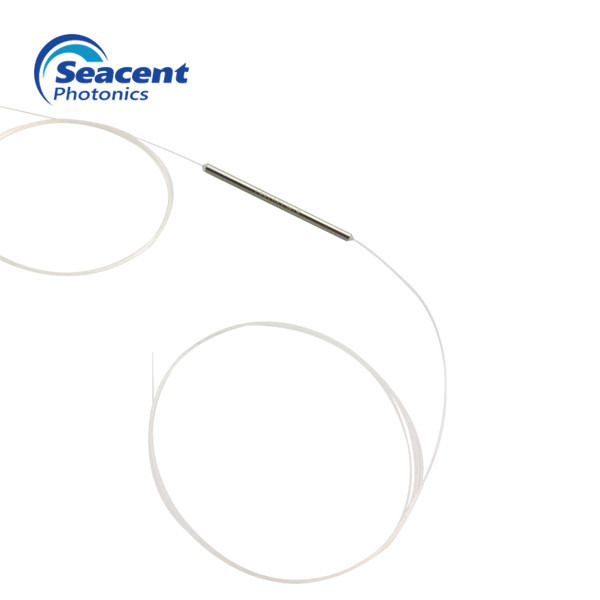

FWDM Filter Wavelength Division Multiplexer Splitter 1310nm / 1490nm / 1550nm
Description:
The FWDM Splitter provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.
FTTX Filter WDM module extensively used in optical amplifiers, WDM networks. The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.
Features:
Applications:
Specification:
|
Parameters |
|||||||
|
Working wavelength (nm) |
T13/R15 |
T15/R13 |
T13/R1415 |
T14R1315 |
T15R1314 |
T1415R13 |
T1314R15 |
|
Transmission wavelength range (nm) |
1310+/-40 |
1550+/-40 |
1310+/-40 |
1490+/-10 |
1550+/-10 |
1490+/-10& 1550+/-10 |
1310+/-40& 1490+/-10 |
|
Reflection wavelength range (nm) |
1550+/-40 |
1310+/-40 |
1490+/-10& 1550+/-10 |
1310+/-40& 1550+/-10 |
1310+/-40& 1490+/-10 |
1310+/-40 |
1550+/-10 |
|
Transmission end insertion loss (dB) |
0.8 (0.6 Typ.) |
||||||
|
Reflective Insertion Loss (dB) |
0.6 (0.4 Typ.) |
||||||
|
Transmission end isolation (dB) |
30 |
||||||
|
Reflector Isolation (dB) |
15 |
||||||
|
Flatness (dB) |
0.3 |
||||||
|
Polarization dependent loss |
0.1 |
||||||
|
Polarization mode dispersion |
0.1 |
||||||
|
Return loss |
45 |
||||||
|
Directionality |
50 |
||||||
|
Maximum withstand optical power (mw) |
500 |
||||||
|
Working temperature (℃) |
-40～85 |
||||||
|
Storage temperature (℃) |
-40～85 |
||||||
|
Package specifications(mm) (Φ×L) |
Φ5.5*L34 |
||||||
Ordering inforamation:
|
LWD |
- |
XX |
X |
XX |
X |
XX |
- |
X |
X |
X |
|
Port Configuration |
WDM Type |
Center Wavelength |
Fiber Type |
Output Fiber Length |
COM Port Connector |
Pass Port Connector |
Reflection Port Connector |
|||
|
L-Lintegrity |
01=1*1 |
F=FWDM |
1=T13/R15 |
B=250um bare fiber |
10=1.0m |
0=None |
0=None |
0=None |
||
|
W=WDM |
02=1*2 |
2=T15/R13 |
L=900um loose tube |
12=1.2m |
1=FC/UPC |
1=FC/UPC |
1=FC/UPC |
|||
|
D=Device |
3=T13/R1415 |
T=900um tight buffer |
15=1.5m |
2=FC/APC |
2=FC/APC |
2=FC/APC |
||||
|
4= T14R1315 |
…… |
3=SC/UPC |
3=SC/UPC |
3=SC/UPC |
||||||
|
5= T15R1314 |
XX=Customized |
4=SC/APC |
4=SC/APC |
4=SC/APC |
||||||
|
6=T1415R13 |
5=LC/UPC |
5=LC/UPC |
5=LC/UPC |
|||||||
|
7=T1314R15 |
6=LC/APC |
6=LC/APC |
6=LC/APC |
|||||||
|
X= Customized |
X= Customized |
X=Customized |
Business advantage
Service:
(1) Experience in serving large customers for more than 8 years
(2) Independently provide product solutions and packaging solutions for customers
(3) Have strong strategic partners
|
|
