High Stability FWDM Splitter , Passive Fiber Optic Splitter RoHS Compliant
Description:

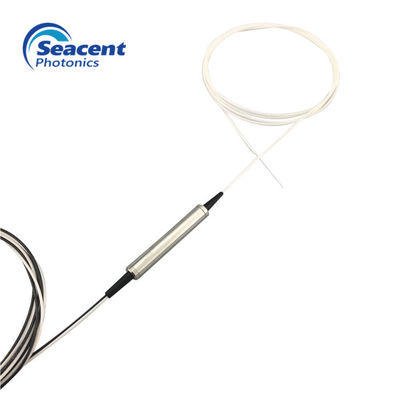

FWDM filter 1310 1550 optical splitter,FWDM T1550 R1310&1490 can achieve 1550/1310&1490 two channel optical signal multiplexing and demultiplexing, Making single optical fiber transmission capacity multiplier, Widely used in optical fiber network upgrading and CATV etc.
Features:
Applications:
Specification:
|
Parameters |
|||||||
|
Working wavelength (nm) |
T13/R15 |
T15/R13 |
T13/R1415 |
T14R1315 |
T15R1314 |
T1415R13 |
T1314R15 |
|
Transmission wavelength range (nm) |
1310+/-40 |
1550+/-40 |
1310+/-40 |
1490+/-10 |
1550+/-10 |
1490+/-10& 1550+/-10 |
1310+/-40& 1490+/-10 |
|
Reflection wavelength range (nm) |
1550+/-40 |
1310+/-40 |
1490+/-10& 1550+/-10 |
1310+/-40& 1550+/-10 |
1310+/-40& 1490+/-10 |
1310+/-40 |
1550+/-10 |
|
Transmission end insertion loss (dB) |
0.8 (0.6 Typ.) |
||||||
|
Reflective Insertion Loss (dB) |
0.6 (0.4 Typ.) |
||||||
|
Transmission end isolation (dB) |
30 |
||||||
|
Reflector Isolation (dB) |
15 |
||||||
|
Flatness (dB) |
0.3 |
||||||
|
Polarization dependent loss |
0.1 |
||||||
|
Polarization mode dispersion |
0.1 |
||||||
|
Return loss |
45 |
||||||
|
Directionality |
50 |
||||||
|
Maximum withstand optical power (mw) |
500 |
||||||
|
Working temperature (℃) |
-40～85 |
||||||
|
Storage temperature (℃) |
-40～85 |
||||||
|
Package specifications(mm) (Φ×L) |
Φ5.5*L34 |
||||||
Ordering inforamation:
|
LWD |
- |
XX |
X |
XX |
X |
XX |
- |
X |
X |
X |
|
Port Configuration |
WDM Type |
Center Wavelength |
Fiber Type |
Output Fiber Length |
COM Port Connector |
Pass Port Connector |
Reflection Port Connector |
|||
|
L-Lintegrity |
01=1*1 |
F=FWDM |
1=T13/R15 |
B=250um bare fiber |
10=1.0m |
0=None |
0=None |
0=None |
||
|
W=WDM |
02=1*2 |
2=T15/R13 |
L=900um loose tube |
12=1.2m |
1=FC/UPC |
1=FC/UPC |
1=FC/UPC |
|||
|
D=Device |
3=T13/R1415 |
T=900um tight buffer |
15=1.5m |
2=FC/APC |
2=FC/APC |
2=FC/APC |
||||
|
4= T14R1315 |
…… |
3=SC/UPC |
3=SC/UPC |
3=SC/UPC |
||||||
|
5= T15R1314 |
XX=Customized |
4=SC/APC |
4=SC/APC |
4=SC/APC |
||||||
|
6=T1415R13 |
5=LC/UPC |
5=LC/UPC |
5=LC/UPC |
|||||||
|
7=T1314R15 |
6=LC/APC |
6=LC/APC |
6=LC/APC |
|||||||
|
X= Customized |
X= Customized |
X=Customized |
|
|
