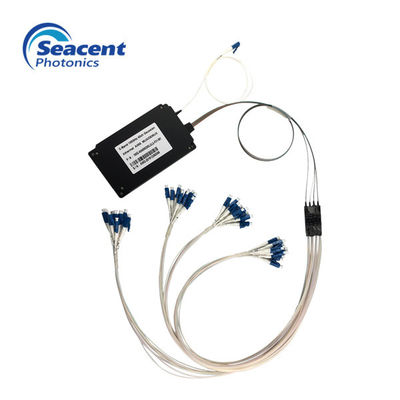

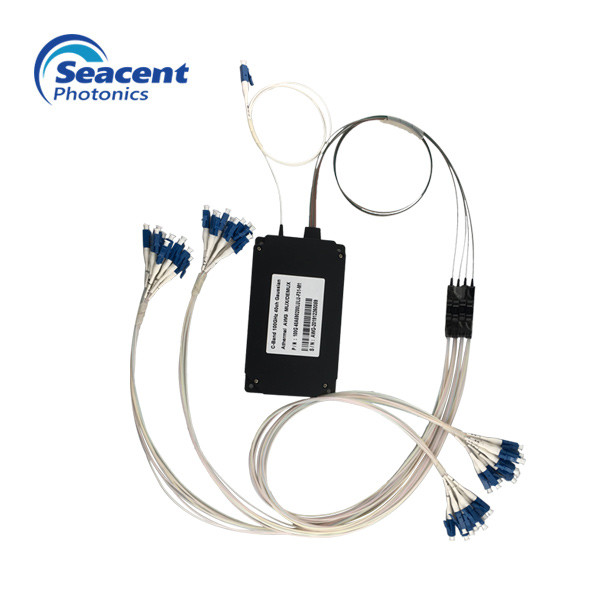

Athermal Awg Arrayed Waveguide Grating , AWG Module Fiber Optic Equipment
Description:
Array waveguide particles used in wavelength division multiplexing (WDM-PON) are also called AWGs. This is a method of manual optical transmission products using high-speed transmission. For transmission methods of large-capacity storage signals such as images, telephones, and data, only 16 and 32 members need to be divided into one optical path at a time. Areas that require long-distance transmission are also used.
AWG Module Features:
AWG Module Usage:
1) FTTX Systems;
2) PON Networks;
3) CATV Links;
4) Optical Signal Distribution;
5) Fiber Data Transmission.
AWG Module Technical Parameters
| parameter | Unit | 100Ghz | 100Ghz | ||
| Gaussian | Flat top | Gaussian | Flat top | ||
| Wavelength Accuracy | nm | ±0.05 | ±0.05 | ±0.07 | ±0.07 |
| Full 1dB Bandwidth | nm | ＞0.2 | ＞0.4 | ＞0.4 | ＞0.7 |
| Full 3 dB Bandwidth | nm | ＞0.4 | ＞0.6 | ＞0.7 | ＞1.0 |
| Optical Insertion Loss | dB | 3.7 | 4.5 | 3.7 | 4.5 |
| Loss Uniformity | dB | 1.0 | 1.0 | 0.8 | 0.8 |
| Adjacent Channel Crosstalk | dB | 27.0 | 27.0 | 28.0 | 28.0 |
| Non-adjacent Channel Crosstalk | dB | 30.0 | 30.0 | 30.0 | 30.0 |
| Optical Return Loss | dB | ＞40 | ＞40 | ＞40 | ＞40 |
| Polarization Loss | dB | ＜0.5 | ＜0.5 | ＜0.5 | ＜0.5 |
| Dimension | mm | 120x70x12.3 / 85x58x113 | |||
| Operating Temperature | ℃ | -20- 70 | |||
