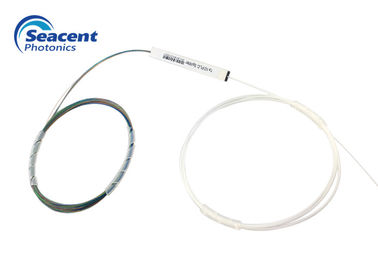

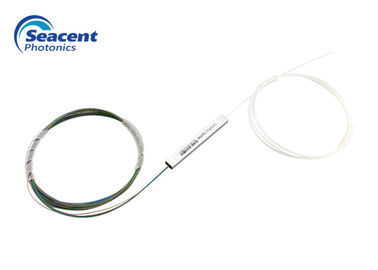

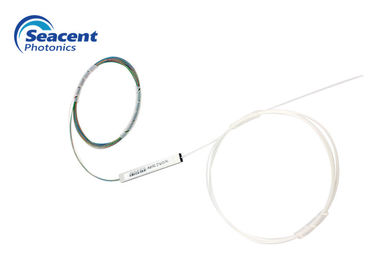

High Return Loss Bare Plc Splitter / Mini Fiber Optic Splitter 1*10
Product description:
The planar waveguide optical splitter (PLC Splitter) is a quartz-based integrated waveguide optical power distribution device with small size, wide operating wavelength range, high reliability, good spectral uniformity, etc., especially suitable for passive optical networks. (EPON, GPON, etc.) connects the central office and terminal equipment and realizes the splitting of optical signals, providing 1XN and 2XN full range of products, and does not customize the optical splitter suitable for various occasions.
Bare Plc Splitter features:
Small size, Compact package, Low insertion loss, Low PDL, High return loss and excellent Channel uniformity, Telcordia GR-1209 and GR-1221 Compliance
Bare Plc Splitter application:
FTTX networks, PON networks, LAN networks,CATV Systems
Bare Plc Splitter Technical parameters: 1XN optical splitter
| Parameter | 1X2 | 1X3 | 1X4 | 1X6 | 1X8 | 1X12 | 1X16 | 1X24 | 1X32 | 1X48 | 1X64 | 1X128 |
| Working wavelength (nm) | 1260-1650 | |||||||||||
| Fiber type | G657A1 or customized | |||||||||||
| Insertion loss (dB) | 3.9 | 6.1 | 7.2 | 9 | 10.2 | 12.5 | 13.5 | 15.5 | 16.8 | 18.4 | 20.1 | 23.8 |
| Uniformity (dB) | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.5 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.35 | ≤0.35 |
| Return loss (dB) | ≥55 | |||||||||||
| Directionality (dB) | ≥55 | |||||||||||
| Fiber length (m) | 1.0or customized | |||||||||||
| Temperature stability (dB) | -40℃--85℃(≤0.5) | |||||||||||
| Working temperature °C | -40℃--85℃ | |||||||||||
| Storage temperature °C | -40℃--85℃ | |||||||||||
Technical parameters: 2XN optical splitter
| Parameter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| wavelength(nm) | 1260-1650 | |||||
| Fiber type | G657A1 or customized | |||||
| Insertion loss (dB) | 4.2 | 7.5 | 10.5 | 13.8 | 17.1 | 20.4 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤2.0 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.35 |
| Return loss (dB) | ≥55 | |||||
| Directionality (dB) | ≥55 | |||||
| Fiber length (m) | 1.0or customized | |||||
| Temperature stability (dB) | -40℃- 85℃(≤0.5) | |||||
| Working temperature °C | -40℃- 85℃ | |||||
| Storage temperature °C | -40℃- 85℃ | |||||
| Maximum power (nW) | 1000 | |||||
Note: The above IL is without the connector parameters.
2xN with connector optical splitter insertion loss increases by no more than 0.3dB on the above requirements.
Ordering Information:
|
|
|
|
|
Product type |
Fiber diameter | Inlet and fiber length |
Package size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0148=1X48 0164=1X64 1128=1X128 |
1=250um 2=900um |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized |
|
Details
Detailed parameters
PLC Splitter-Bare Device-Seacent Photonics .pdf
|
|
