Rack Mount PLC Splitter
>
Low Loss Telecom Plc Optical Splitter , Fiber To The Home Ftth Splitter

Low Loss Telecom Plc Optical Splitter , Fiber To The Home Ftth Splitter

Brand Name: Seacent
Model Number: 1x32 rack type PLC Splitter
MOQ: Negotiation
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100,0000 pieces per months
Detail Information
Place of Origin:
Guangdong , China
Certification:
ISO9001, ROHS
Product Name:
1x32 Plc Optical Splitter
Working Wavelength:
1260-1650 Nm
Feature:
Low Loss
Insertion Loss:
17.1 DB
Uniformity:
≤0.3 DB
Return Loss:
≥55dB
Operating Temperature:
-40℃- 85℃(≤0.5)
Supply Ability:
100,0000 pieces per months
High Light:

rack mount splitter

,

rack type plc

Product Description

Low Loss Telecom Plc Optical Splitter , Fiber To The Home Ftth Splitter



Plc Optical Splitter description:



Plc Optical Splitter is a quartz-based integrated waveguide optical power distribution device with small size, wide operating wavelength range, high reliability, good spectral uniformity, etc., especially suitable for passive optical networks. (EPON, GPON, etc.) connects the central office and terminal equipment and realizes the splitting of optical signals, providing 1XN and 2XN full range of products, and does not customize the optical splitter suitable for various occasions.



Plc Optical Splitter features:

  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability



Plc Optical Splitter Application :



Fiber to the home

Passive optical network

wired TV internet

PON-FTTX network



Plc Optical Splitter Technical parameters: 1XN optical splitter



Parameter 1X2 1X3 1X4 1X6 1X8 1X12 1X16 1X24 1X32
Working wavelength (nm) 1260-1650
Fiber type G657A1 or customized
Insertion loss (dB) 4.2 6.4 7.5 9.4 10.8 12.8 13.8 15.8 17.1
Uniformity (dB) ≤0.4 ≤0.5 ≤0.5 ≤0.6 ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤1.5
Polarization dependent loss (dB) ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Return loss (dB) ≥55
Directionality (dB) ≥55
Fiber length (m) 1.0 or customized
Temperature stability (dB) -40℃- 85℃(≤0.5)
Working temperature °C -40℃- 85℃
Storage temperature °C -40℃- 85℃
Maximum power (nW) 1000



Technical parameters: 2XN optical splitter



Parameter 2X2 2X4 2X8 2X16 2X32
Working wavelength (nm) 1260-1650
Fiber type G657A1 or customized
Insertion loss (dB) 4.5 7.8 11.1 14.1 17.4
Uniformity (dB) ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤1.5
Polarization dependent loss (dB) ≤0.25 ≤0.25 ≤0.25 ≤0.3 ≤0.3
Return loss (dB) ≥55
Directionality (dB) ≥55
Fiber length (m) 1.0 or customized
Temperature stability (dB) -40℃- 85℃(≤0.5)
Working temperature °C -40℃- 85℃
Storage temperature °C -40℃- 85℃
Maximum power (nW) 1000



Ordering Information:

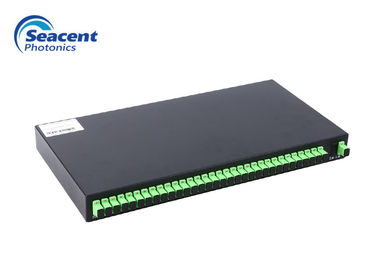

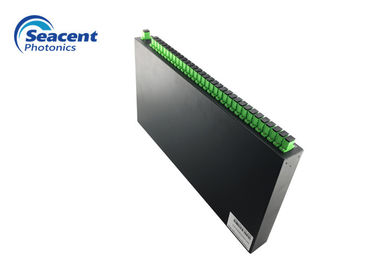

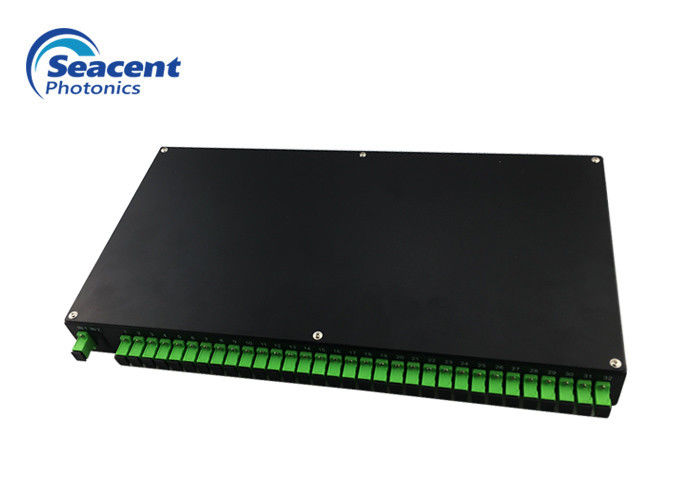

Low Loss Telecom Plc Optical Splitter , Fiber To The Home Ftth Splitter 0 Low Loss Telecom Plc Optical Splitter , Fiber To The Home Ftth Splitter 1 Low Loss Telecom Plc Optical Splitter , Fiber To The Home Ftth Splitter 2 Low Loss Telecom Plc Optical Splitter , Fiber To The Home Ftth Splitter 3
Product type Inlet and exit diameter Inlet and fiber length

Rack Chassis

size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32



2=0.9mm

3=2.0mm

0=0.6M

S=Customized

1=1U

2=2U





Pictures



Low Loss Telecom Plc Optical Splitter , Fiber To The Home Ftth Splitter 4

Detailed parameters



PLC Splitter-Rack Mount-Seacent Photonics .pdf
