| Brand Name: | Seacent |
| Model Number: | 1x32 rack mount PLC Splitter |
| MOQ: | Negotiation |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,0000 pieces per months |

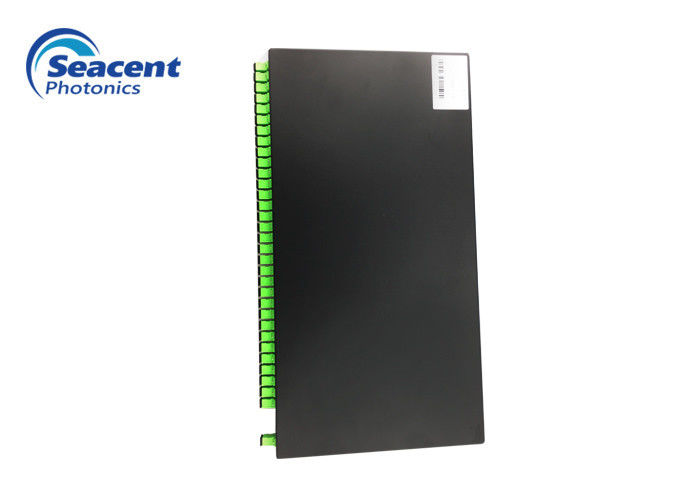

Indoor Fiber Optic Plc Splitter / G657A1 Rack Type Plc Splitter
Fiber Optic Plc Splitter details:
The planar waveguide optical splitter (PLC Splitter) is a quartz-based integrated waveguide optical power distribution device with small size, wide operating wavelength range, high reliability, good spectral uniformity, etc., especially suitable for passive optical networks. (EPON, GPON, etc.) connects the central office and terminal equipment and realizes the splitting of optical signals, providing 1XN and 2XN full range of products, and does not customize the optical splitter suitable for various occasions.
Fiber Optic Plc Splitter Features
* Excellent Mechanical,Small Size
* High Reliability
* Low insertion Loss and low Polarization Dependent loss
* High channel counts
* Excellent Environmental Stability and Widely Used
Fiber Optic Plc Splitter application areas:
Passive optical network
wired TV internet
PON-FTTX network
Technical parameters: 1XN optical splitter
| Parameter | 1X2 | 1X3 | 1X4 | 1X6 | 1X8 | 1X12 | 1X16 | 1X24 | 1X32 |
| Working wavelength (nm) | 1260-1650 | ||||||||
| Fiber type | G657A1 or customized | ||||||||
| Insertion loss (dB) | 4.2 | 6.4 | 7.5 | 9.4 | 10.8 | 12.8 | 13.8 | 15.8 | 17.1 |
| Uniformity (dB) | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss (dB) | ≥55 | ||||||||
| Directionality (dB) | ≥55 | ||||||||
| Fiber length (m) | 1.0 or customized | ||||||||
| Temperature stability (dB) | -40℃- 85℃(≤0.5) | ||||||||
| Working temperature °C | -40℃- 85℃ | ||||||||
| Storage temperature °C | -40℃- 85℃ | ||||||||
| Maximum power (nW) | 1000 | ||||||||
Technical parameters: 2XN optical splitter
| Parameter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 |
| Working wavelength (nm) | 1260-1650 | ||||
| Fiber type | G657A1 or customized | ||||
| Insertion loss (dB) | 4.5 | 7.8 | 11.1 | 14.1 | 17.4 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 |
| Return loss (dB) | ≥55 | ||||
| Directionality (dB) | ≥55 | ||||
| Fiber length (m) | 1.0 or customized | ||||
| Temperature stability (dB) | -40℃- 85℃(≤0.5) | ||||
| Working temperature °C | -40℃- 85℃ | ||||
| Storage temperature °C | -40℃- 85℃ | ||||
| Maximum power (nW) | 1000 | ||||
Ordering Information:
|
|
|
|
| Product type | Inlet and exit diameter | Inlet and fiber length |
Rack Chassis size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32
|
2=0.9mm 3=2.0mm |
0=0.6M S=Customized |
1=1U 2=2U
|
Pictures
