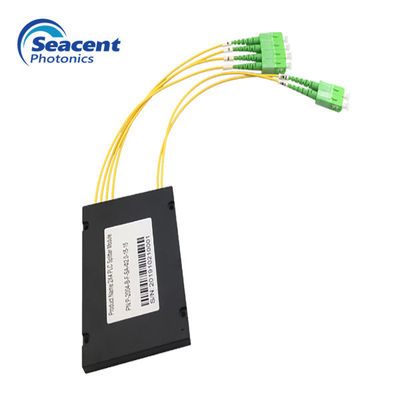

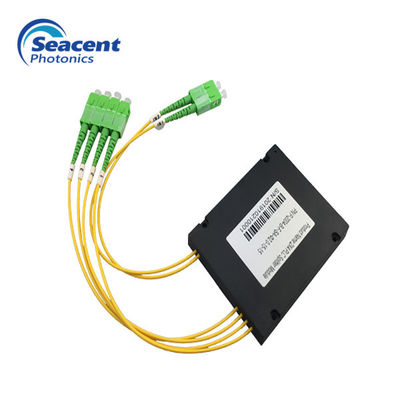

2X4 ABS Cassette Type PLC Splitter Module high return loss in FTTH
PLC Splitter Module Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
PLC Splitter Module Features
PLC Splitter Module Applications
PLC Splitter Module Parameters
1XN
| Parameter | 1X2 | 1X3 | 1X4 | 1X6 | 1X8 | 1X12 | 1X16 | 1X24 | 1X32 | 1X48 | 1X64 | 1X128 |
| Working wavelength (nm) | 1260-1650 | |||||||||||
| Fiber type | G657A1 or customized | |||||||||||
| Insertion loss (dB) | 3.9 | 6.1 | 7.2 | 9.0 | 10.2 | 12.5 | 13.5 | 15.5 | 16.8 | 18.4 | 20.1 | 23.8 |
| Uniformity (dB) | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.5 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.35 | ≤0.35 |
| Return loss (dB) | ≥55 | |||||||||||
| Directionality (dB) | ≥55 | |||||||||||
| Fiber length (m) | 1.0 or customized | |||||||||||
| Temperature stability (dB) | -40℃--85℃(≤0.5) | |||||||||||
| Working temperature °C | -40℃--85℃ | |||||||||||
| Storage temperature °C | -40℃--85℃ | |||||||||||
| Maximum power (nW) | 1000 | |||||||||||
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
2XN
| Parameter | 2X2 | 2x4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Working wavelength (nm) | 1260-1650 | |||||
| Fiber type | G657A1 or customized | |||||
| Insertion loss (dB) | 4.2 | 7.5 | 10.5 | 13.8 | 17.1 | 20.4 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤2.0 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.35 |
| Return loss (dB) | ≥55 | |||||
| Directionality (dB) | ≥55 | |||||
| Fiber length (m) | 1.0 or customized | |||||
| Temperature stability (dB) | -40℃--85℃(≤0.5) | |||||
| Working temperature °C | -40℃--85℃ | |||||
| Storage temperature °C | -40℃--85℃ | |||||
| Maximum power (nW) | 1000 | |||||
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
