Micro Type SC APC 1x2 Optical Splitter For Passive Optical Network
Contact Person : Mike nie
Phone Number : 8613713851846
WhatsApp : +8613713851846
Minimum Order Quantity : | Negotiable | Price : | Negotiation |
---|---|---|---|
Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T |
Supply Ability : | 1000000 pieces per month |
Place of Origin: | Guangdong,China | Brand Name: | Seacent |
---|---|---|---|
Certification: | ISO9001,ROHS | Model Number: | 1x6 |
Detail Information |
|||
Insertion Loss: | 9.0 DB | Return Loss: | ≥55 DB |
---|---|---|---|
Uniformity: | ≤0.5 DB | Polarization Dependent Loss: | ≤0.25 DB |
Temperature Stability: | -40℃- 85℃(≤0.5 DB) | Working Temperature: | -40℃- 85℃ |
High Light: | optical plc splitter,plc fiber splitter |
Product Description

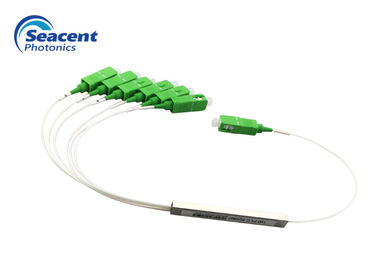

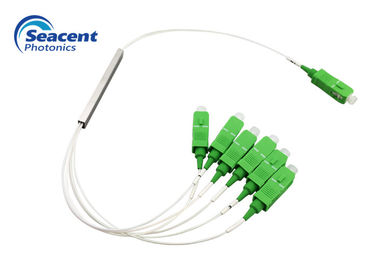

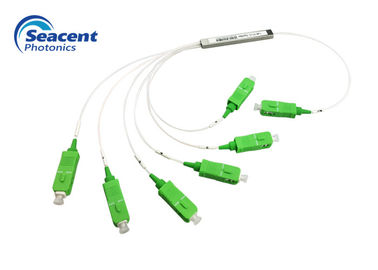

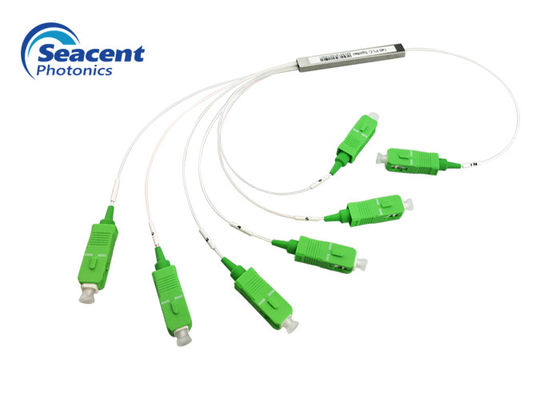

1x6 micro type PLC Splitter with SC/APC Connector special ratio
Fiber Optic PLC Splitter Description
Mini type PLC Splitter provides small size and high reliability of optical distribution solution with low cost. It not only retains the compact structure of Bare Fiber PLC Splitter, but also provides connectors, it is the ideal choice for applications in small size conditions.
Fiber Optic PLC Splitter Features
Fiber Optic PLC Splitter Applications
Fiber Optic PLC Splitter Parameters
1XN
Parameter | 1X2 | 1X3 | 1X4 | 1X6 | 1X8 | 1X12 | 1X16 | 1X24 | 1X32 | 1X48 | 1X64 | 1X128 |
Working wavelength (nm) | 1260-1650 | |||||||||||
Fiber type | G657A1 or customized | |||||||||||
Insertion loss (dB) | 3.9 | 6.1 | 7.2 | 9.0 | 10.2 | 12.5 | 13.5 | 15.5 | 16.8 | 18.4 | 20.1 | 23.8 |
Uniformity (dB) | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.5 |
Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.35 | ≤0.35 |
Return loss (dB) | ≥55 | |||||||||||
Directionality (dB) | ≥55 | |||||||||||
Fiber length (m) | 1.0 or customized | |||||||||||
Temperature stability (dB) | -40℃--85℃(≤0.5) | |||||||||||
Working temperature °C | -40℃--85℃ | |||||||||||
Storage temperature °C | -40℃--85℃ | |||||||||||
Maximum power (nW) | 1000 |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
2XN
Parameter | 2X2 | 2x4 | 2X8 | 2X16 | 2X32 | 2X64 |
Working wavelength (nm) | 1260-1650 | |||||
Fiber type | G657A1 or customized | |||||
Insertion loss (dB) | 4.2 | 7.5 | 10.5 | 13.8 | 17.1 | 20.4 |
Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤2.0 |
Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.35 |
Return loss (dB) | ≥55 | |||||
Directionality (dB) | ≥55 | |||||
Fiber length (m) | 1.0 or customized | |||||
Temperature stability (dB) | -40℃--85℃(≤0.5) | |||||
Working temperature °C | -40℃--85℃ | |||||
Storage temperature °C | -40℃--85℃ | |||||
Maximum power (nW) | 1000 |
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
Fiber Optic PLC Splitter Detaild Specification
