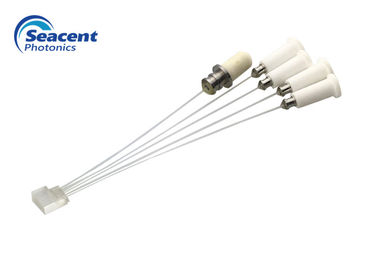

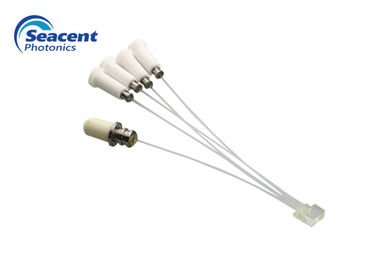

PLC Splitters 5 Channel 2.0m Optical Fiber Array
PLC Splitters 5 Channel 2.0m Optical Fiber Array PLC Splitters 5 Channel 2.0m Optical Fiber Array
Contact Now

PLC Splitters 5 Channel 2.0m Optical Fiber Array

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 200x135x20mm Delivery Time : 5-8 work days
Payment Terms : L/C, T/T Supply Ability : 1500pcs/day
Place of Origin: Guangdong,China Brand Name: Seacent
Certification: ISO9001,ROHS Model Number: Fiber array-8CH

Detail Information
Color: Blue, Orange, Green, Brown, White, Red, Black, Yellow, Purple, Pink, Water Green Material: Quartz Glass, Borosilicate, Silicon
Polishing Angle ( ° ): 0,+8, -8 (±0.3) Connector: SC,FC,LC,ST,
Ferrule Polish: PC,UPC,APC Packing: Blister Box、Inner Box And Export Carton,Polybag
High Light:

plc fiber array

,

fiber optic array

Product Description

5 Channel Optical Fiber Array for PLC Splitters

Fiber Array Description

   The fiber array is a bare fiber that removes the fiber coating.A portion is placed in the V-groove and is pressurized by the adhesive by the pressurization member.The array products position the optical fiber cores with precision and accuracy within the V-Groove Blocks by an ultra-precision processing technology. The process requires accuracy on a submicron level in order to reduce the connection loss.



Fiber Array Specifications

Item Parameter
Number of channels 1CH ~ 128CH
Material Quartz glass, borosilicate, silicon
Core distance/tolerance(μm) 250, 127 / 0.7
Fiber length (m) 2.0±0.1
Polishing angle ( ° ) 0,+8, -8 (±0.3)
Polishing flatness ﹤ 5 fringes@633nm
Fiber type SMF-28e or SMF-28e XB
Operating temperature(℃) -40~85
