Micro Type SC APC 1x2 Optical Splitter For Passive Optical Network
Contact Person : Mike nie
Phone Number : 8613713851846
WhatsApp : +8613713851846
Minimum Order Quantity : | Negotiation | Price : | Negotiation |
---|---|---|---|
Packaging Details : | Single item&50pcs/box | Delivery Time : | 5-8 work days |
Payment Terms : | L/C, T/T | Supply Ability : | 1000000 pieces per month |
Place of Origin: | Guangdong,China | Brand Name: | Seacent |
---|---|---|---|
Certification: | ISO9001,ROHS | Model Number: | 1x6 |
Detail Information |
|||
Name: | Optic PLC Splitter | Working Wavelength: | 1260-1650 Nm |
---|---|---|---|
Fiber Type: | G657A1 Or Customized | Temperature Stability: | -40℃--85℃ (≤0.5dB) |
Working Temperature: | -40℃--85℃ | Type: | 1x6 |
High Light: | optical plc splitter,plc fiber splitter |
Product Description

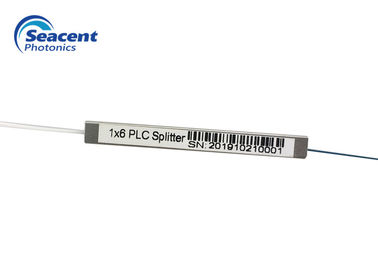

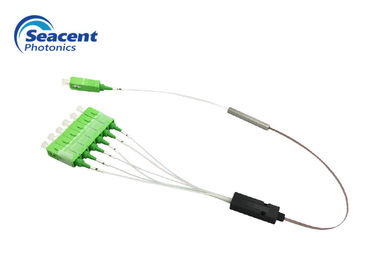

1x6 High Stability Fiber Optic PLC Splitter Fiber To The Home Branch Type
Fiber Optic PLC Splitter Description
splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. Features include small size, high reliability and a wide operating wavelength. The PLC splitter is widely used in all fiber optic networks to realize optical signal power splitting. All products are GR-1221-CORE compliant.

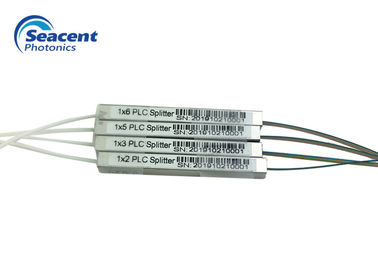

Seacent Photonics's fiber optic splitters are available in a wide range of styles and sizes to split or combine light with minimal loss. All splitters are manufactured using a very simple process that produces reliable, low-cost devices. Splitters can be fabricated in custom fiber lengths and with any type of connector. Multicom PLC splitters are available in tube, box, cassette, and rack mount configurations, from 1 to 32 splits, even or customized splits, single and multimode, with any connector type.
Fiber Optic PLC Splitter Features
Fiber Optic PLC Splitter Application
Fiber Optic PLC Splitter Parameters
Parameter |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
Working wavelength (nm) |
1260-1650 |
||||
Fiber type |
G657A1 or customized |
||||
Insertion loss (dB) |
7.2 |
10.2 |
13.5 |
16.8 |
20.1 |
Uniformity (dB) |
≤0.5 |
≤0.8 |
≤1.0 |
≤1.5 |
≤1.8 |
Polarization dependent loss (dB) |
≤0.25 |
≤0.25 |
≤0.3 |
≤0.3 |
≤0.35 |
Return loss (dB) |
≥55 |
||||
Directionality (dB) |
≥55 |
||||
Fiber length (m) |
1.0 or customized |
||||
Temperature stability (dB) |
-40℃--85℃(≤0.5) |
||||
Working temperature °C |
-40℃--85℃ |
||||
Storage temperature °C |
-40℃--85℃ |
||||
Maximum power (nW) |
1000 |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
Parameter | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
Working wavelength (nm) | 1260-1650 | ||||
Fiber type | G657A1 or customized | ||||
Insertion loss (dB) | 7.5 |
10.5 |
13. |
17.1 |
20.4 |
Uniformity (dB) |
≤1.0 |
≤1.0 |
≤1.5 |
≤1.5 |
≤2.0 |
Polarization dependent loss (dB) |
≤0.25 |
≤0.25 | ≤0.3 | ≤0.3 | ≤0.35 |
Return loss (dB) | ≥55 | ||||
Directionality (dB) | ≥55 | ||||
Fiber length (m) | 1.0 or customized | ||||
Temperature stability (dB) | -40℃--85℃(≤0.5) | ||||
Working temperature °C | -40℃--85℃ | ||||
Storage temperature °C | -40℃--85℃ | ||||
Maximum power (nW) | 1000 |
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
Fiber Optic PLC Splitter Detailed Specification
PLC Splitter-Branch type-Seacent Photonics.pdf
