| Brand Name: | Seacent |
| Model Number: | 80ch AWG |
| MOQ: | 1 piece |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |

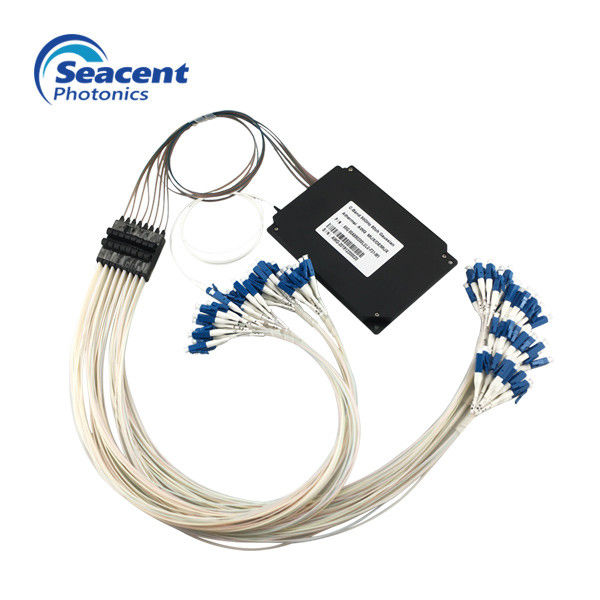

80 Channel AWG Mux High Isolation
Description:
| Parameter | unit | Flat top | Gaussian | Flat top | Gaussian |
| Number of channels | 16/32/40/48 | 80/88/96 | |||
| Channel spacing | Ghz | 50 | 50 | ||
| Channel frequency | Thz | Blue band=1528.773~1547.316 | C band=1526.827~1564.679 | ||
| Red band=1545.720~1564.679 | |||||
| Wavelength accuracy | nm | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| 1db bandwidth | nm | >0.18 | >0.12 | >0.18 | >0.12 |
| 3db bandwidth | nm | >0.28 | >0.20 | >0.28 | >0.20 |
| Insertion loss (passband) | dB | <4.5 | <3.7 | <5.5 | <4.5 |
| Adjacent channel crosstalk | dB | >27 | >27 | ||
| Non-adjacent channel crosstalk | dB | >30 | >30 | ||
| Total crosstalk | dB | >24 | >24 | ||
| Insertion loss uniformity | dB | <1.2 | <1.5 | ||
| Polarization loss | dB | <0.5 | <0.5 | <0.5 | <0.5 |
| Return loss | dB | >40 | |||
| Dispersion | ps/nm | ±10 | |||
| Operating temperature | ºC | -20~70 | |||
| Size (length * width * height) | mm | 120*70*12.3 | 130*90*11.3 | ||
Business advantage
Product:
(1) High reliability, high stability, small size, low insertion loss
(2) 1*N 2*N multiple channel forms
(3) 1260-1650nm full-band operation
(4) Industrial working environment: -40 ° C - + 85 ° C
(5) ISO9001-2015 quality system, Telcordia GR-1209-CORE, GR-1221-CORE standard certificate
(6) Customization: can be customized according to customer requirements
(7) Product process: industry leading
Service:
(1) Experience in serving large customers for more than 8 years
(2) Independently provide product solutions and packaging solutions for customers
(3) Have strong strategic partners
|
|
