Networks 1X4 PLC Optical Splitter For FTTH Solution
Networks 1X4 PLC Optical Splitter For FTTH Solution Networks 1X4 PLC Optical Splitter For FTTH Solution Networks 1X4 PLC Optical Splitter For FTTH Solution
Contact Now

Networks 1X4 PLC Optical Splitter For FTTH Solution

Minimum Order Quantity : Negotiable Price : Negotiation
Delivery Time : 5-8 work days Payment Terms : L/C, T/T
Supply Ability : 1000000 pieces per month
Place of Origin: Guangdong,China Brand Name: Seacent
Certification: ISO9001,ROHS Model Number: 1x4 ABS Type

Detail Information
Insertion Loss: 7.5 DB Return Loss: ≥55 DB
Polarization Dependent Loss: ≤0.35 DB Working Temperature: -40℃- 85℃
High Light:

1X4 PLC fiber plc splitter

,

FTTH splitter fiber optic

,

FTTH PLC Optical Splitter

Product Description

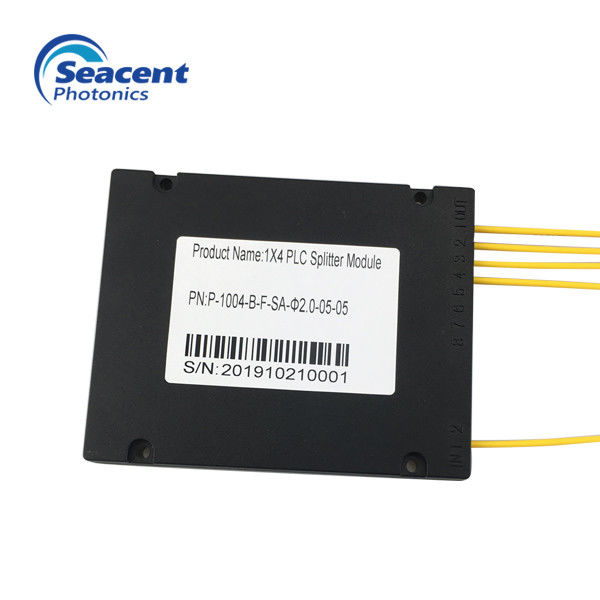

1X4 ABS Type PLC Splitter for FTTH Solution





PLC Splitter Module Description



Fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.



PLC Splitter Module Features

  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability
  • Telcordia GR-1221 and GR-1209





PLC Splitter Module Applications

  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment





PLC Splitter Module Parameters

1XN

Parameter 1X2 1X3 1X4 1X6 1X8 1X12 1X16 1X24 1X32 1X48 1X64 1X128
Working wavelength (nm) 1260-1650
Fiber type G657A1 or customized
Insertion loss (dB) 3.9 6.1 7.2 9.0 10.2 12.5 13.5 15.5 16.8 18.4 20.1 23.8
Uniformity (dB) ≤0.4 ≤0.5 ≤0.5 ≤0.6 ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤1.5 ≤1.8 ≤1.8 ≤2.5
Polarization dependent loss (dB) ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.35 ≤0.35
Return loss (dB) ≥55
Directionality (dB) ≥55
Fiber length (m) 1.0 or customized
Temperature stability (dB) -40℃--85℃(≤0.5)
Working temperature °C -40℃--85℃
Storage temperature °C -40℃--85℃
Maximum power (nW) 1000

Note: The above IL is without the connector parameters.

1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.



2XN

Parameter 2X2 2x4 2X8 2X16 2X32 2X64
Working wavelength (nm) 1260-1650
Fiber type G657A1 or customized
Insertion loss (dB) 4.2 7.5 10.5 13.8 17.1 20.4
Uniformity (dB) ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤1.5 ≤2.0
Polarization dependent loss (dB) ≤0.25 ≤0.25 ≤0.25 ≤0.3 ≤0.3 ≤0.35
Return loss (dB) ≥55
Directionality (dB) ≥55
Fiber length (m) 1.0 or customized
Temperature stability (dB) -40℃--85℃(≤0.5)
Working temperature °C -40℃--85℃
Storage temperature °C -40℃--85℃
Maximum power (nW) 1000

Note: The above IL is without the connector parameters.

2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.



PLC Splitter Module Detaild Specification

PLC Splitter-ABS type-Seacent Photonics.pdf
