FTTH FTTB Armored Fiber Optic Patch Cord Low Insertion Loss

Minimum Order Quantity : 1 piece Price : USD 0.57~0.85 per piece
Supply Ability : 150,000 pieces
Place of Origin: Guangdong, China Brand Name: Seacent
Certification: ISO9001,ROHS

Detail Information

Application: FTTH FTTB FTTX Network Product Name: Armored Fiber Optic Patch Cable Cord
Outer Jacket: PVC/LSZH Operating Tempera: -40℃〜75℃
Connector Type: FC, SC, LC Core: Duplex, Simplex, Fan-out,
High Light:

FTTB Armored Fiber Optic Patch Cord

,

FTTH Armored Fiber Optic Patch Cord

,

FTTH Armored optical patch cord

Product Description

FTTH FTTB Armored Fiber Optic Patch Cord Low Insertion Loss


Product Description of Fiber Optic Patch Cable


The fiber optic connector is divided into single-mode and multi-mode connectors. According to the structure of the connector, it can be divided into various customized models such as SC, FC, LC, and ST. The ST connector is usually used for the wiring device end, and the other connectors are the wiring environment. Link, the main material uses A-class ferrule, imported aramid, high tensile strength, large tensile strength, cable sheath is made of PVC low-smoke flawless environmentally friendly flame retardant material, high flame retardant fire resistance grade, in line with ROHS wire certification standards.Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment

Product Specification of Fiber Optic Patch Cable

Mode SM MM
Polish UPC APC PC
Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strengh > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)

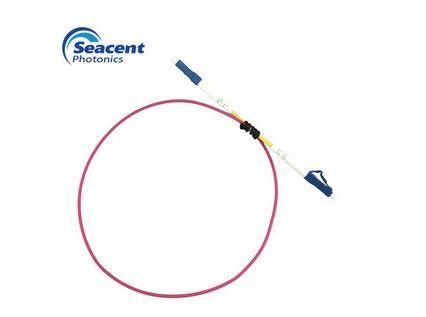

FTTH FTTB Armored Fiber Optic Patch Cord Low Insertion Loss 0


Features:

  • Low insertion loss High return loss
  • Excellent mechanical endurance
  • High credibility and stability
  • Good in repeatability and exchangeability





Product Application of Fiber Optic Patch Cable





1) FTTH, LAN, PON & Optical CATV, Local ring net
2) Optical fiber communication system
3) Optical fiber test equipment
4) Optical fiber sensor
5) Industry and military application



FTTH FTTB Armored Fiber Optic Patch Cord Low Insertion Loss 1

FTTH FTTB Armored Fiber Optic Patch Cord Low Insertion Loss 2FTTH FTTB Armored Fiber Optic Patch Cord Low Insertion Loss 3
