SC APC connector Fiber Optic Splitter 1x2 for FTTB FTTX PON CATV
Contact Person : Mike nie
Phone Number : 8613713851846
WhatsApp : +8613713851846
| Minimum Order Quantity : | 100 piece | Delivery Time : | 3 work days |
|---|---|---|---|
| Payment Terms : | L/C, T/T | Supply Ability : | 100,000 pieces per month |
| Place of Origin: | Guangdong , China | Brand Name: | Seacent |
|---|---|---|---|
| Certification: | ISO9001 , ROHS | Model Number: | 1x2 micro type |
|
Detail Information |
|||
| Product Name: | Fiber Optic PLC Splitter | Type: | 1*2/1*4/1*8/1*16/1*32 |
|---|---|---|---|
| Application: | FTTH FTTB FTTX | Connector Type: | SC/APC |
| Return Loss: | ≥55 DB | Insertion Loss: | ≤4.1 DB |
| High Light: | SC APC 1x2 Optical Splitter,FTTX 1x2 Optical Splitter,FTTX 1x2 plc splitter |
||
Product Description

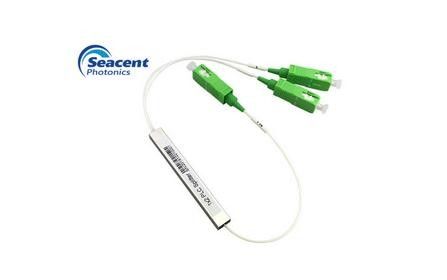

Micro Type SC APC 1x2 Optical Splitter For Passive Optical Network
Fiber Optic PLC Splitter 1x2 micro type with SC/APC connector
Fiber optic splitter is an integrated waveguide optical power distribution device , which also referred as optical splitter. It plays an important role in passive optical network (EPON, GPON, BPON, FTTX, FTTH and so on) by allowing a single PON interface to be shared among many subscribers. To achieve this, it is designed to split an incident light beam into two or more light beams and couple the light beams to the branch distribution as an optical fiber tandem device, which has the function to maximize the performance of network circuits.
Seacent Photonics provides all type of 1xN micro PLC splitter, including 1x2, 1x3, 1x4, 1x6, 1x8, 1x12, 1x16, 1x24, 1x32, 1x48, 1x64, 1x128.
Here are the details of 1x2 micro type fiber optic PLC splitter with SC/APC connector
Fiber Optic PLC Splitter Features:
Fiber Optic PLC Splitter Appliacation:
Specifications:
| Item | 1×2 With Conn |
| Operating Wavelength | 1260~1650㎚ |
| Insertion Loss(IL) | ≤4.1 |
| Uniformity(UF) | ≤0.4 |
| Polarization Dependent Loss(PDL) | ≤0.2 |
| Return Loss(RL) | ≥55㏈ |
| Directivity | ≥55㏈ |
| Fiber length (m) | 1.0 or customized |
| Temperatures stability | -40℃--85℃(≤0.5) |
| Working Temperature | -40℃--85℃ |
| Storage temperature °C | -40℃--85℃ |
| Maximum power (mW) | 1000 |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
Drawing :
