V Groove 128CH Plc Splitter Fiber Array Quartz Glass Borosilicate

Brand Name:	Seacent
Model Number:	Fiber Array-4ch
MOQ:	10pcs
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

ISO9001,ROHS

Material:

Quartz Glass, Borosilicate, Silicon

Polishing Angle ( ° ):

0,+8, -8 (±0.3)

Fiber Type:

SMF-28e Or SMF-28e XB

Color:

Black,blue,Yellow,yellow Or Customized,orange

Connector Type:

SC/FC/LC-APC/UPC,LC,ST,FC,TOSLINK

Connector:

SC,FC,LC,ST,LC Fiber Patch Cord And So On

Ferrule Polish:

PC,UPC,APC

Packing:

Inner Box And Export Carton,Polybag

High Light:

Plc Splitter Fiber Array

,

128CH Fiber Array

,

128CH v groove fiber array

Product Description

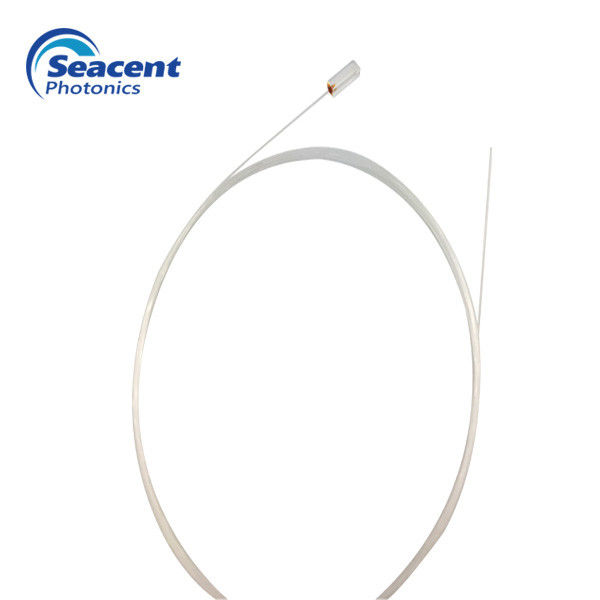

V Groove 128CH Plc Splitter Fiber Array Quartz Glass Borosilicate

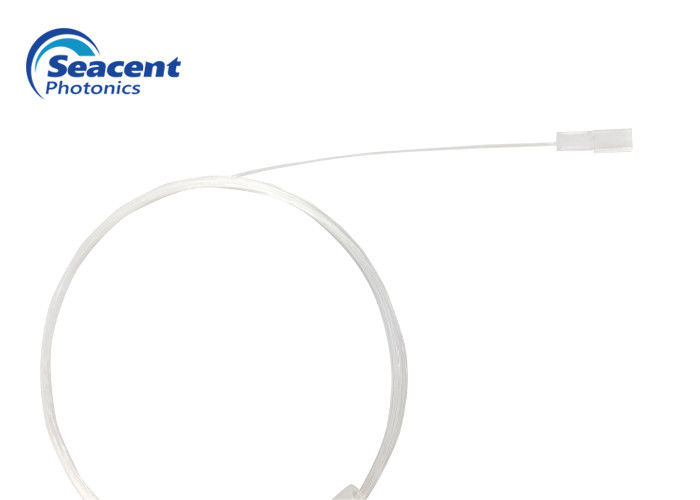

Pyrex material 4CH fiber array multiple color order

Description:

The array products position the optical fiber cores with precision and accuracy within the V-Groove Blocks by an ultra-precision processing technology. The process requires accuracy on a submicron level in order to reduce the connection loss.

Fiber Array Specification:

Item	Parameter
Material	Quartz glass, borosilicate, silicon
Number of channels	1CH ~ 128CH
Core distance/tolerance(μm)	250, 127 / 0.7
Fiber length (m)	2.0±0.1
Polishing angle ( ° )	0,+8, -8 (±0.3)
Polishing flatness	﹤ 5 fringes@633nm
Fiber type	SMF-28e or SMF-28e XB
Operating temperature(℃)	-40~+85

Fiber Array Features:

Low Insertion Loss
High Return Loss.
Wide Operation Temperature
High Stability and Reliability
High accuracy of fiber core position
Excellent fiber core position accuracy
custom design flexibility

Fiber Array Applications:

PLC Devices
Splitters
AWG
Coupler

V-groove base plate dimension table:

	L		W		H		X		Y	comprehensive error
type	size	common difference	size	common difference	size	common difference	size	common difference	core height difference	R=√ x2+y2
2CH 250	10	±0.3	2.5	±0.05	2.5	±0.05	0.25	≤0.0005	≤0.001	＜0.1
4CH 250	10	±0.3	2.5	±0.05	2.5	±0.05	0.25	≤0.0005	≤0.001	＜0.1
8CH 250	10	±0.3	3.5	±0.05	2.5	±0.05	0.25	≤0.0005	≤0.001	＜0.1
8CH 127	10	±0.3	2.5	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
16CH 127	10	±0.3	3.5	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
32CH 127	10	±0.3	5.7	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
48CH 127	12	±0.3	7.8	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
64CH 127	12	±0.3	9.8	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
96CH 127	12	±0.3	16	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
128CH 127	12	±0.3	20	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1

Ordering Information:

Product number	Fiber type	Fiber length
01=1CH 02=2CH 03=4CH 04=8CH 05=12CH 06=16CH 07=24CH 08=32CH 09=48CH 10=64CH 11=96CH 12=128CH	1=G657A1 2= G657A2 3=G652D 4=G652B	0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized
