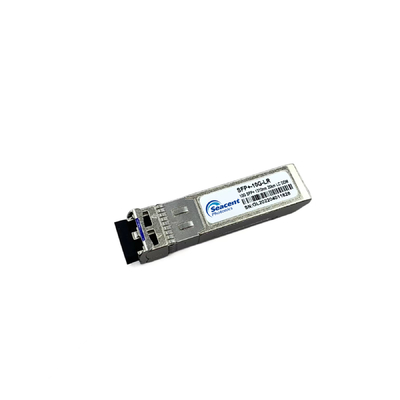

Duplex LC 10Gb SFP+ Module SMF 1310nm DFB PIN Receiver 20km

Product Description

10Gb/s Duplex LC, SMF, 1310nm DFB, PIN Receiver, 20km SFP+ Transceiver

1. Features:

• Support multi-protocol from 8.5Gb/s to 11.3Gb/s
• Hot-Pluggable SFP+ footprint
• 1310nm DFB laser transmitter
• Duplex LC connector
• Up to 20 km on 9/125μm SMF
• Single +3.3V Power Supply
• Compliant with SFF-8431 SFF-8432 and IEE802.3ae
• Low power dissipation <1.5W typically
• Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/0°C to 70°C Version available
• RoHS compliant and Lead Free

2. Applications:

• 10GBASE-LR/LW Ethernet
• 40km 10G Fiber channel
• SDH/SONET Application

Description:

Seacent transceivers are Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 20km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432 and 10GBASE ER/EW; support 4x, 8x and 10x Fibre Channel. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. GLight GL-SS-41320 transceivers are RoHS compliant per Directive 2011/65/EU. The high performance 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 20km links.

Mechanical Dimensions
