Product Description

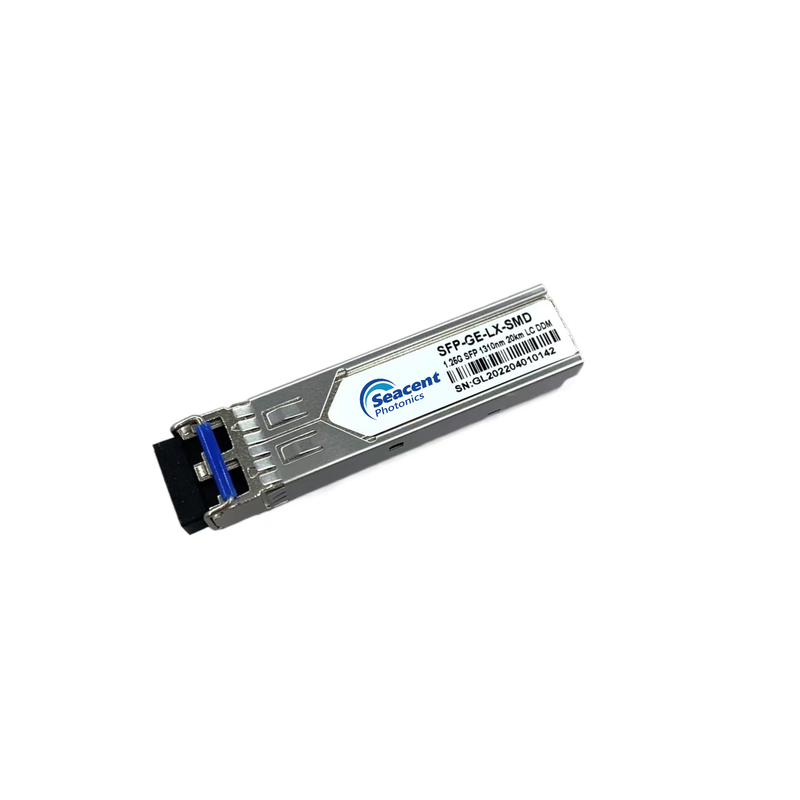

1.25Gb/s Duplex LC, 1310nm FP-LD LX 20km RoHS Compliant SFP Transceiver

1. Features:

• Up to 1.25Gb/s Data Links
• Hot-Pluggable
• 1310nm FP laser transmitter
• Duplex LC connector
• Up to 20 km on 9/125μm SMF
• Single +3.3V Power Supply
• Monitoring Interface Compliant with SFF-8472
• Low power dissipation <1W typically
• Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/0°C to 70°C Version available
• RoHS compliant and Lead Free

2. Applications:

• Metro/Access Networks
• 1.25 Gb/s 1000Base-LX Ethernet
• 1×Fiber Channel
• Other Optical Link

Description:

Seacent Small Form Factor Pluggable (SFP)Transceiver is a high performance, cost effective modulewhich has a Duplex LC optics interface, Standard AC coupled CML for high speed signal and LVTTL control and monitor signals.

The receiver section usesa PIN receiver and the transmitter uses1310 nm FP laser, up to 15dB link budge ensure this module 1000BASE Ethernet 20km application.

Mechanical Dimensions
