Ultra Small WDM Filter CWDM MUX DEMUX , Multi Channel Mux 1270~1610 Nm
Contact Person : Mike nie
Phone Number : 8613713851846
WhatsApp : +8613713851846
| Minimum Order Quantity : | 1 piece | Delivery Time : | 5-8 work days |
|---|---|---|---|
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 100,000 pieces per month |
| Place of Origin: | Guangdong, China | Brand Name: | Seacent |
|---|---|---|---|
| Certification: | ISO9001,ROHS | Model Number: | 4 channels |
|
Detail Information |
|||
| Model NO.: | 4 6 8 Channel CCWDM | Waveband: | 1270-1330 Nm |
|---|---|---|---|
| Channel Bandwidth: | ITU±6.5 Nm | Center Wavelength Accuracy: | ±0.5 Nm |
| Operating Temperature: | -5~70 ℃ | ||
| High Light: | 8 Channel CCWDM,1270nm CCWDM,1330nm CWDM Modules |
||
Product Description

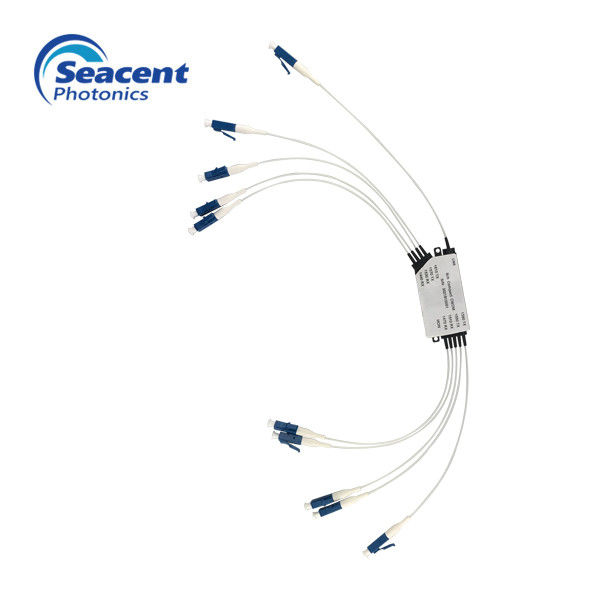

1270nm 1330nm 4 6 8 Channel CCWDM With Low Polarization Dependent Loss
4 channels Compact CWDM 1270-1330 wavelength low insertion loss
Description:
Seacent Photonics offers compact CWDM modules that have a free-space structure and provide high optical performance. They come in a small-sized package and have extremely low insertion loss. These features help to significantly reduce optical power budgets for various applications. Additionally, these modules enable datacom or telecom network applications to use low-cost uncooled lasers, which also contributes to their cost-effectiveness.
These modules are available in configurations ranging from 4 to 18 channels, making them suitable for expanding the bandwidth of any network. As a single component serving as both a Mux and a Demux, the CCWDM also simplifies inventory management and can be used in the head end for outside plant.
The versatile and easy-to-install compact CWDM module provides a simple and cost-effective solution for expanding bandwidth and increasing revenue from existing optical fiber.
Compact Coarse Wavelength Division Multiplexing (CCWDM) is the use of the Fiber Optical Multiplexer to different wavelengths of light signals multiplexed to a single optical fiber for transmission, at the receiving end of the link, with the Fiber Optical Multiplexer fiber mixed signal is decomposed into different wavelengths signal, connected to the respective receiving device
Specifications:
| Item | 4CH | 8CH | 18CH |
| Center wavelength (nm) | ITU or ITU+1(Customizable starting wavelength) | ||
| Product Features | Mux or Demux or Mux&Demux | ||
| Channel wavelength (nm) | 1270~1610 | ||
| Center wavelength accuracy (nm) | ±0.5 | ||
| Channel pitch (nm) | 20 | ||
| Insertion loss (dB) | ≤1.0 | ≤1.5 | ≤3.2 |
| Channel uniformity (dB) | ≤0.5 | ≤0.5 | ≤0.5 |
| Isolation adjacent (dB) | >30 | >30 | >30 |
| Isolation Non-adjacent (dB) | >45 | >45 | >45 |
| Polarization-dependent loss (dB) | <0.2 | ||
| Polarization Mode Dispersion (PS) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return loss (dB) | >45 | ||
| Connector type | LC/APC or customer specified | ||
| Maximum power (mW) | 500 | ||
| Working temperature (℃) | -5~70 | ||
| Storage temperature (℃) | -40~85 | ||
| Package (mm) | 44x25x6 or customer specified | ||
Remark:The above parameters do not contain connectors.
Features:
Low Insertion Loss
High isolation
Low Polarization Dependent Loss
Compact design
Good channel-to-channel uniformity
Wide operating wavelength range
High reliability and high stability
Telcordia GR-1209-CORE-2001 compliant
Telcordia GR-1221-CORE-1999 compliant
RoHS-6 compliant (lead free)
