| Brand Name: | Seacent |
| Model Number: | 2X16 ABS Box |
| MOQ: | 1 piece |
| Price: | USD 4.7-6.78 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

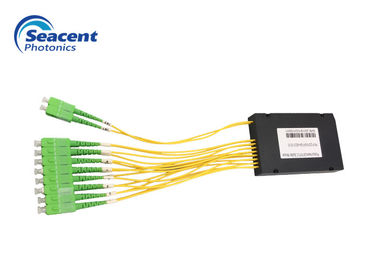

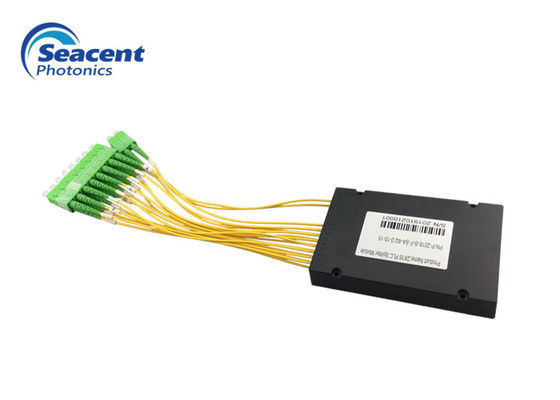

Optical Plc Splitter 2X16 Ftth Splitter Box For Fiber Optic Cable
Features:
Application:
Specifications:
| Item | Parameter |
|
IL(dB) |
7.5 |
|
RL(dB) |
≥55 |
|
PDL(dB) |
≤0.25 |
|
Uniformity (dB) |
≤1.0 |
|
Directionality (dB) |
≥55 |
|
Fiber type |
G657A1 or customized |
|
Fiber length (m) |
1.0 or customized |
|
Working wavelength (nm) |
1260-1650 |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature °C |
-40℃- 85℃ |
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
Ordering information:
|
product type |
Inlet and exit diameter |
Inlet and fiber length |
ABS box size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=2.0mm 3=3.0mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=customized |
2x2 100x45x10 mm to or 2x8 100x80x10 mm
2x12 100x80x10 mm to or 2x32 120x80x18 mm
2x64 to 141x115x18 mm 2x128
|
Advantages Of PLC Optical Splitter
1. Adopt high strength stainless steel, pass salt spray test
2. Ferrule core is less than 0.2um
3. Adopt 100% new raw material, ROHS compliance
4. Low Insertion loss
5. Low PDL Compact Design
6. Good channel-to-channel uniformity
7. Wide Operating Wavelength: from 1260nm to 1650nm
8. Wide Operating Temperature: from -40℃ to 85℃
|
|
