Brand Name: | Seacent |
Model Number: | 2X8 ABS Box |
MOQ: | 1 piece |
Price: | USD 5.2-8.28 per piece |
Payment Terms: | L/C, T/T |
Supply Ability: | 100,000 pieces per month |

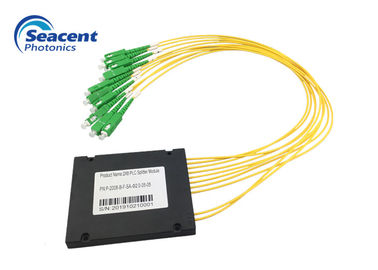

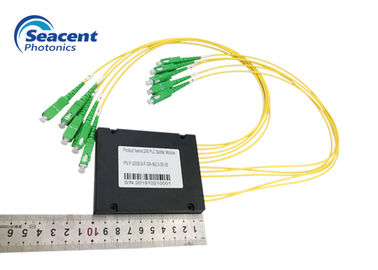

FTTH FTTB FTTX PON 2X8 Cassette PLC Splitter SC APC Connector type
FTTH FTTB FTTX PON Cassette PLC Splitter 2X8 10.5 DB Insertion Loss
Compact and modular design: The compact and modular design of Cassette PLC Splitters makes them easy to use in places with limited space such as racks, ODF racks and cabinets, reducing equipment footprint.
High-density ports: Cassette PLC Splitter usually has 12 or 24 ports, which can realize higher-density port configuration and increase the capacity of the device.
Low insertion loss: Cassette PLC Splitter adopts optical chip distribution technology, which can achieve low insertion loss and improve the transmission quality and distance of the signal.
High reliability: Cassette PLC Splitter is made of inorganic silicon-based materials, which has higher stability and reliability and can be used in a wide range of temperature and humidity.
Easy to maintain and manage: Cassette PLC Splitter adopts plug-in design, which is easy to maintain and manage. At the same time, they can be added or replaced without interfering with other fiber connections.
Application:
Specifications:
Item | Parameter |
IL(dB) |
10.5 |
RL(dB) |
≥55 |
PDL(dB) |
≤0.25 |
Uniformity (dB) |
≤1.0 |
Directionality (dB) |
≥55 |
Fiber type |
G657A1 or customized |
Fiber length (m) |
1.0m or customized |
Working wavelength (nm) |
1260-1650 |
Temperature stability (dB) |
≤0.5 |
Working temperature °C |
-40℃- 85℃ |
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
Ordering information:
product type |
Inlet and exit diameter |
Inlet and fiber length |
ABS box size |
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=2.0mm 3=3.0mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=customized |
2x2 100x45x10 mm to or 2x8 100x80x10 mm
2x12 100x80x10 mm to or 2x32 120x80x18 mm
2x64 to 141x115x18 mm 2x128
|
