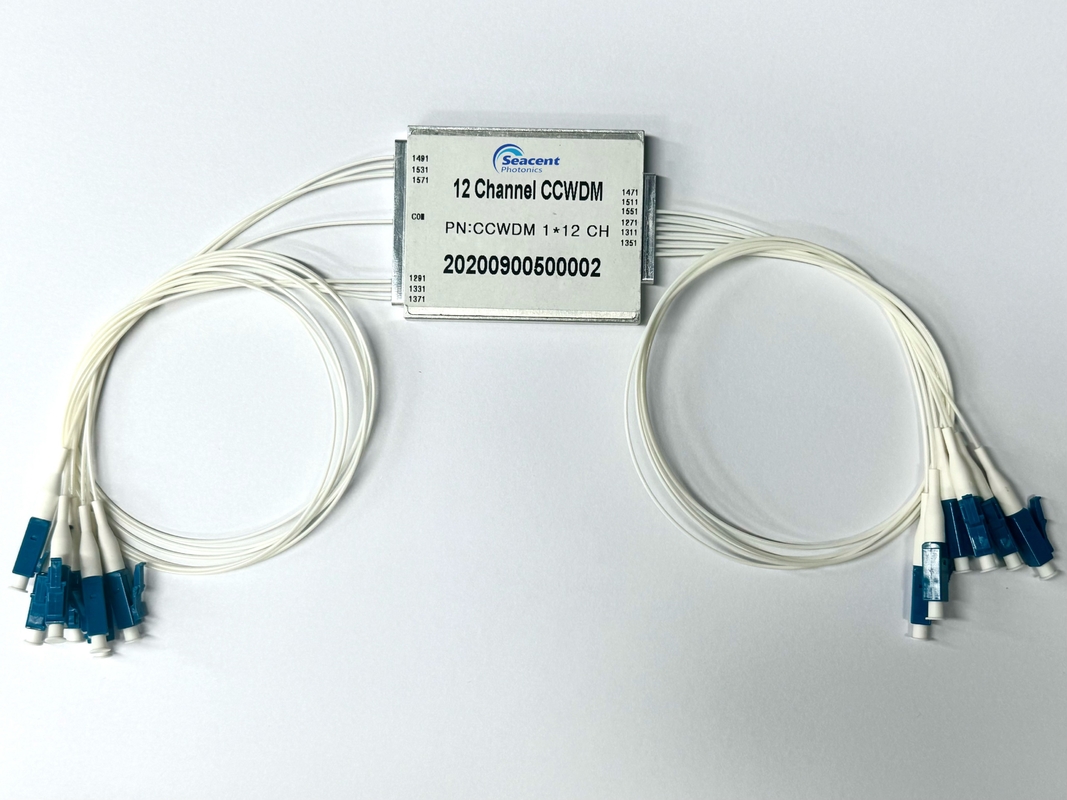

12 CH CCWDM 1271-1371nm，1471-1571nm Wavelength Low Insertion Loss
  • name

12 CH CCWDM 1271-1371nm，1471-1571nm Wavelength Low Insertion Loss

Brand Name: Seacent
Model Number: 12CH ccwdm
MOQ: 10
Supply Ability: 10000
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001,ROHS
Wavelength Band:
1271-1371, 1471-1571nm
Channel Bandwidth:
ITU±6.5 Nm
Connector Type:
LC/UPC Or Customer Specified
Center Wavelength Accuracy:
±0.5 Nm
Operating Temperature:
-5~70 ℃
Package Size:
430x290x95 Mm Or Customer Specified
Supply Ability:
50,000 Pieces Per Month
Supply Ability:
10000
Highlight:
Ccwdm Mux Demux, Compact Cwdm
Product Description

12 channels Compact CWDM 1270-1330 wavelength low insertion loss



Description:

Seacent Photonics compact CWDM Modules feature free-space structure, high optical performance, small-sized package, and extremely low insertion loss. With these features, they dramatically relax the optical power budgets for your applications, allow datacom or telecom network applications to use low-cost uncooled lasers, and function in small-sized packages. Available from 4 to 18 channel configurations, the CCWDM can meet the expansion needs of any network. The module also simplifies inventory management since the same component serves as both a Mux and a Demux and can be used in the head end for outside plant. Compact and easy to install, the versatile compact CWDM module provides a simple and low-cost method for expanding bandwidth and increasing revenue from existing optical fiber.





Specifications:

Item 12CH
Center wavelength (nm) ITU or ITU+1(Customizable starting wavelength)
Product Features Mux or Demux or Mux&Demux
Channel wavelength (nm) 1270~1610
Center wavelength accuracy (nm) ±0.5
Channel pitch (nm) 20
Insertion loss (dB) with connector ≤1.8
Channel uniformity (dB) ≤0.5
Isolation adjacent (dB) >30
Isolation Non-adjacent (dB) >45
Polarization-dependent loss (dB) <0.2
Polarization Mode Dispersion (PS) <0.2
Directivity (dB) >50
Return loss (dB) >50
Connector type LC/UPC or customer specified
Maximum power (mW) 500
Working temperature (℃) -5~70
Storage temperature (℃) -40~85
Fiber Type G657A1
Package (mm) 430x290x95 or customer specified

Remark:The above parameters do not contain connectors.



Operating Wavelength (Center nm)

  • CH1-Tx:1291nm
  • CH1-Rx:1271nm
  • CH2-Tx:1331nm
  • CH2-Rx:1311nm
  • CH3-Tx:1371nm
  • CH3-Rx:1351nm
  • CH4-Rx:1491nm
  • CH4-Tx:1471nm
  • CH5-Rx:1531nm
  • CH5-Tx:15111nm
  • CH6-Tx:1571nm
  • CH6-Rx:1551nm

Features:

Low Insertion Loss
High isolation
Low Polarization Dependent Loss
Compact design
Good channel-to-channel uniformity
Wide operating wavelength range
High reliability and high stability
Telcordia GR-1209-CORE-2001 compliant
Telcordia GR-1221-CORE-1999 compliant
RoHS-6 compliant (lead free)



Application:

CWDM system

PON network

Cable chain



Specification Detail:



SPCS-XXXXXX CCWDM 12CH spec2.pdf
