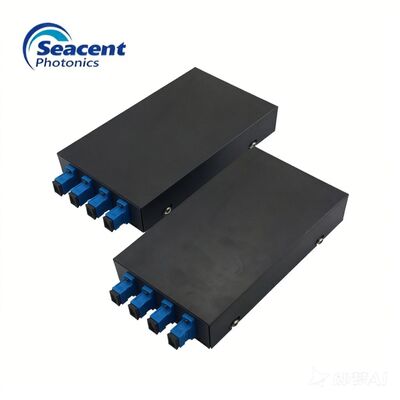

Rack type CWDM Mux Demux 4 / 6 / 8 Channels

Brand Name:	Seacent
Model Number:	Rack type CWDM
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

ISO9001,ROHS

Product Name::

Mux OrDemux Or Mux&Demux

Type:

Rack Type CWDM

Channel Wavelength:

1270~1610nm

Center Wavelength Accuracy:

±0.5nm

Channel Spacing:

Warranty:

3 Years

Channel Passband（@ -0.5dbbandwidth):

>14nm

Connector:

LC/APC Or Customized

Certification:

CE RoHS FCC,ISO9001,CE,FCC,RoHS

Operating Temperature:

-20 ~+70°C

Highlight:

rack mount CWDM Mux Demux 8 channels

CWDM Mux Demux 4 channels

6 channel CWDM Mux Demux

Product Description

Rack type CWDM Mux Demux 4/6/8 Channels

product description

CWDM technology efficiently expands fiber capacity by multiplexing multiple optical wavelengths onto a single fiber. Seacent’s Mux/Demux modules ensure precise signal separation at the receiving end, directing each wavelength to its designated device with high reliability.

feature

Low insertion loss

Compact design

High isolation

Low Polarization Dependent Loss (PDL)

Good channel-to-channel consistency

Wide operating wavelength: 1270-1610nm

Wide working temperature: -20 ° C ~ 70 ° C

Built for Harsh Environments

Application field

CWDM system

PON network

Cable chain

technical parameter

parameter	4 channels	6 channels	8 channels
Center wavelength(nm)	ITU or ITU+1(Customizable starting wavelength)
Product Features	Mux orDemux or Mux&Demux
Channel wavelength (nm)	1270~1610
Center wavelength accuracy (nm)	±0.5
Channel spacing (nm)	20
Channel passband(@ -0.5dbbandwidth(nm)	>14
Insertion loss(dB)	≤1.4	≤2.6	≤3.0
Channel uniformity(dB)	≤0.5	≤0.5	≤0.5
Channel ripple(dB)	0.3
Isolation(dB) Adjacent	>30	>30	>30
Isolation (dB) Non adjacent	>40	>40	>40
Polarization dependent loss(dB)	<0.2
Polarization mode dispersion(PS)	<0.1
Directionality(dB)	>50
Return loss(dB)	>45
Connector type	LC/APC or customized
Maximum power(mW)	500
Operating temperature(℃)	-20~70
Storage temperature(℃)	-40~85
Package type(mm)	LGX,Box, rack or customer designation
Package size(mm)	LGX:201x256x44 or 155x100x29 Box:100x80x10 or 120x80x18 or 141x120x28 rack :1U: 484x260x44 or 2U: 482x260x88

Details

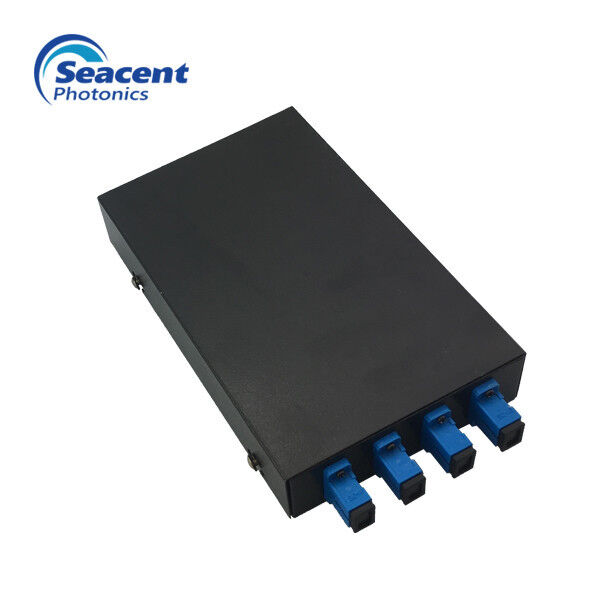

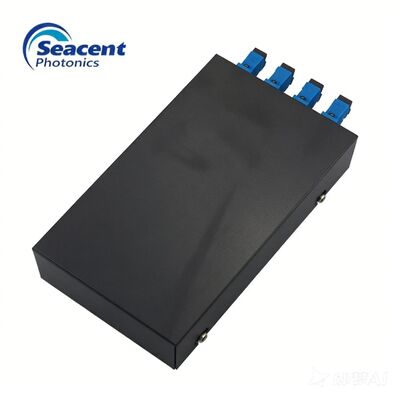

Rack type CWDM Mux Demux 4 / 6 / 8 Channels 0

Business advantage

Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners

Technology:

(1) Professionally engaged in high-precision packaging production of optical devices for 15 years

(2) 15 years of technical team

(3) Have their own core technology

Detailed parameters

CWDM-Seacent Photonics.pdf
