40G QSFP+ AOC Multi-Mode Active Optical Cables
  • name
  • name

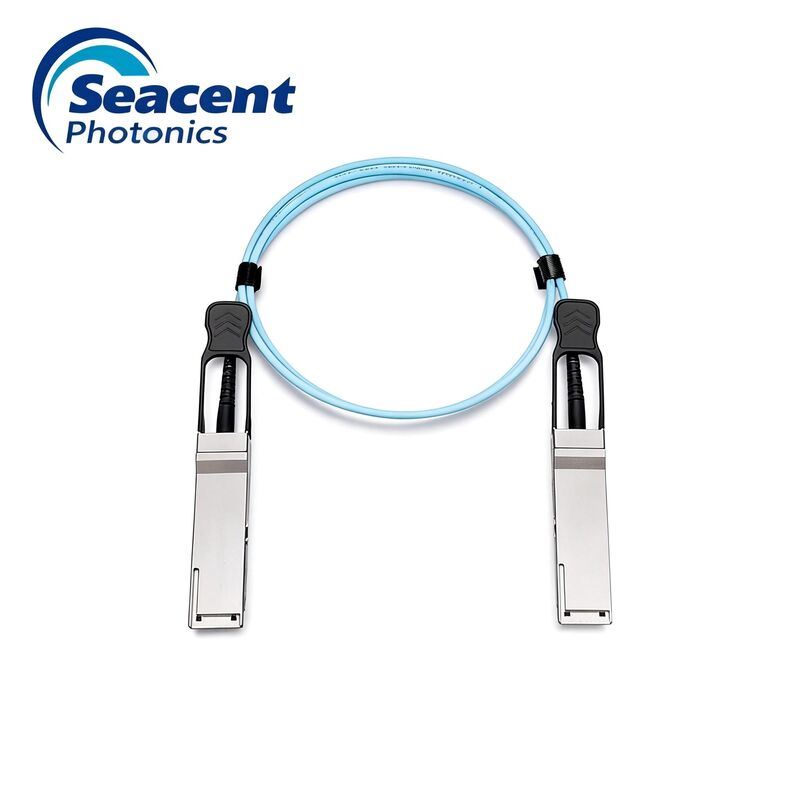

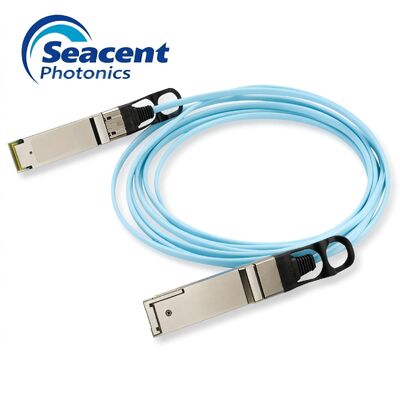

40G QSFP+ AOC Multi-Mode Active Optical Cables

Brand Name: Seacent
Model Number: 40G QSFP+
MOQ: 1 piece
Payment Terms: L/C,T/T,D/P
Supply Ability: 100,000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
ISO9001,ROHS
Product Name:
40G QSFP+ AOC
Total Speed:
40G
Breakout Type:
1:1
Length:
1m-100m
Supply Ability:
100,000 pieces per month
Highlight:

40G QSFP+ AOC cables

,

multi-mode active optical cables

,

QSFP+ AOC with warranty

Product Description

40G QSFP+ AOC Multi-Mode Active Optical Cables

This Seacent QSFP+ Active Optical Cable is a four-channel parallel optical module for 40 Gigabit Ethernet and Infiniband FDR/EDR applications. It provides full-duplex connectivity for four channels over a single cable, with a transmission distance of up to 300m (OM3) over multimode fiber. The module is compliant with the SFF-8436 specification, utilizes 850nm VCSEL and PIN arrays, and interfaces via a 38-contact connector.


Product Features:

• SFF-8436 compliant QSFP+ active optical cable
• Four-channel full-duplex, reach up to 82m (OM2)/300m (OM3)
• Based on 850nm VCSEL transmitter and PIN receiver arrays
• Power dissipation <1.4W per end
• RoHS compliant


​Applications:​

• 40GBASE SR4 Ethernet



Details:

Type Total Speed Breakout Type SideA Speed Side A Form Factor Side B Speed Side B Form Factor
40G QSFP+  40G 1:1 4x10G NRZ QSFP+ 4x10G NRZ QSFP+

40G QSFP+ to 4x10G SFP+

 40G 1:4 4x10G NRZ QSFP+ 1x10G NRZ SFP+


Absolute Maximum Ratings:

Parameter Symbol Min. Max. Unit
Power Supply Voltage VCC -0.5 +3.6 V
Storage Temperature Tc -40 +85 ℃
Relative Humidity RH 0 85 %

Recommended Operating Conditions

Parameter Symbol Min. Typical Max. Unit
Supply Voltage VCC 3.15 3.30 3.45 V
Operating Case Temp. (Standard) Tca 0 — +70 ℃
Operating Case Temp. (Industrial) Tca -40 — +85 ℃
Data Rate Per Lane DR — — 10.3125 Gbps
Fiber Bend Radius Rb 3 — — cm
