Telecommunication Networks Fiber Optic PLC Splitter , 1x2 Plc Splitter Bare Device

Minimum Order Quantity : 1 piece Delivery Time : 5 work days
Payment Terms : L/C, T/T Supply Ability : 100,000 pieces per month
Place of Origin: Shenzhen,China Brand Name: Seacent
Certification: ISO9001 , ROHS Model Number: 1x2 bare device

Detail Information

Product Name: Fiber Optic PLC Splitter Type: 1*2/1*4/1*8/1*16/1*32/1*64
Application: FTTH FTTB FTTX PON CATV Fiber Module: 250um Bare
Operating Temperature: -40℃ To 85℃ Fiber Type: G657A1 Or Customized
High Light:

optical plc splitter

,

plc fiber splitter

Product Description

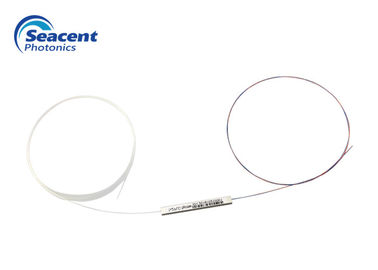

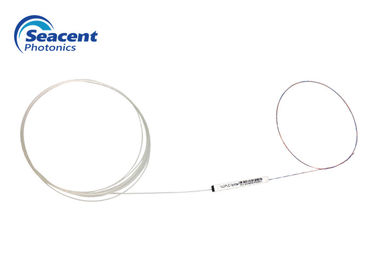

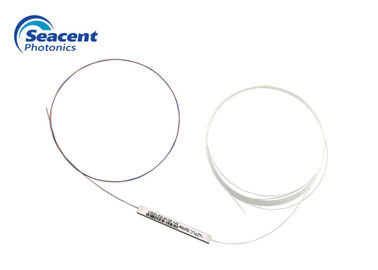

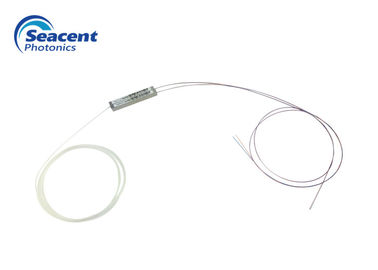

Fiber Optic PLC Splitter 1x2 bare device 1m customized for FTTH



PLC splitters ,which used to distribute or combine optical signals, stands for Planar Lightwave Circuit. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.

With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.This product provide a cost effective and space saving product suitable to the ever changing networking requirements.

Installation is simple using a variety of connector types or fusion splicing.

Applications:

  • WAN , LAN & Metro Networks
  • Telecommunication Networks
  • FTT(X) Systems
  • CATV
  • Passive Optical Networks
  • Value Added Module

Product Features:

  • Compact design
  • Optical performance 100% factory tested
  • UPC, and APC polish types available for connectorized products
  • Low Insertion Loss, Back Reflection and PDL
  • Certified by Telcordia GR.1209 and GR.1221



Specificatrion:



Item Parameters

Insertion loss  (dB)

3.9

Uniformity  (dB)

≤0.4

Polarization dependent loss  (dB)

≤0.25

Return loss  (dB)

≥55

Return loss  (dB)

≥55

Fiber length  (m)

1.0or customized

Fiber type

G657A1 or customized

Temperature stability  (dB) -40℃--85℃(≤0.5)

Working temperature  °C

-40℃--85℃

Storage temperature  °C

-40℃--85℃

Maximum power (nW)

1000







Ordering Information:



Product type

  Fiber diameter

    Inlet and fiber length

Package

size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

   1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2        4x4x40 mm

  to         or

1x8        4x5x40 mm



1x12

  to         4x7x60 mm

1x32



1x48

  to         4x12x60 mm

1x64



1x128     6x20x80 mm
