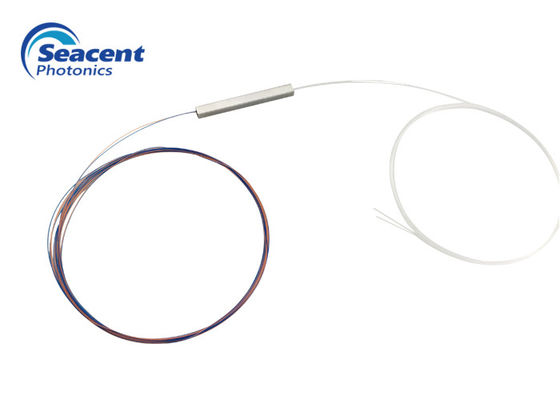

High Stability Fiber Plc Splitter Bare Device 2x2 Type With 1m Length Customized

Minimum Order Quantity : 1 piece Delivery Time : 5 work days
Payment Terms : L/C, T/T Supply Ability : 100,000 pieces per month
Place of Origin: Shenzhen,China Brand Name: Seacent
Certification: ISO9001 , ROHS Model Number: 2x2 type bare device

Detail Information

Product Name: PLC Splitter Bare Device Application: FTTH FTTB FTTX PON CATV
Fiber Type: G657A1 Or Customized Return Loss: ≥55
Insertion Loss: ≤4.2 DB Fiber Length: 1m Customized
High Light:

optical plc splitter

,

bare plc splitter

Product Description

Fiber Optic PLC Splitter bare device 2x2 type 1m length customized

Fiber optic splitter is extremly important in telecommunication network. The bare device is the basic of all kinds of PLC splitter.Splitter is a device that splits the fiber optic light into several parts by a certain ratio. For example, when a beam of fiber optic light transmitted from a 1X4 equal ratio splitter, it will be divided into 4-fiber optic light by equal ratio that is each beam is 1/4 or 25% of the original source one. A fiber optic splitter is different from WDM. WDM can divide the different wavelength fiber optic light into different channels. fiber optic splitter divide the light power and send it to different channels.

Most Splitters available in 900µm loose tube and 250µm bare fiber. 1x2 and 2x2 couplers come standard with a protective metal sleeve to cover the split. Higher output counts are built with a box to protect the splitting components

Product Features:

  •

    Low loss and stable polarization

  • Optical performance 100% factory tested
  • High stability and reliability
  • Good channel uniformity
  • Certified by Telcordia GR.1209 and GR.1221



Applications:

  • LAN, WAN & Metro Networks
  • Fiber to the home
  • Passive Optical Networks
  • PON-FTTX network
  • wired TV internet
  • Value Added Module

Specifications:



Item Parameters

IL (dB)

4.2

Uniformity (dB)

≤0.8

PDL(dB)

≤0.25

RL (dB)

≥55

Directionality (dB)

≥55

Fiber length (m)

1.0m or customized

Working wavelength (nm)

1260-1650

Temperature stability (dB)

-40℃- 85℃(≤0.5)

Working temperature °C

-40℃- 85℃

Maximum power (nW)

1000







Ordering Information:



Product type

Fiber diameter

Inlet and fiber length

Package size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2         4x4x40 mm

 to           or

1x8         4x5x40 mm



1x12

 to            4x7x60 mm

1x32



1x48

 to             4x12x60 mm

1x64



1x128      6x20x80 mm
