2x16 Plc Optical Splitter Bare Device With High Stability And Reliability

Minimum Order Quantity : 1 piece Delivery Time : 5-8 work days
Payment Terms : L/C, T/T, D/P Supply Ability : 100,000 pieces per month
Place of Origin: Shenzhen,China Brand Name: Seacent
Certification: ISO9001 , ROHS Model Number: 2x16 type bare device

Detail Information

Product Name: PLC Splitter Bare Device Application: Optical Network
Return Loss: ≥55 Insertion Loss: ≤13.8 DB
Length Type: Customized Fiber Type: G657A1
High Light:

optical plc splitter

,

plc fiber splitter

Product Description

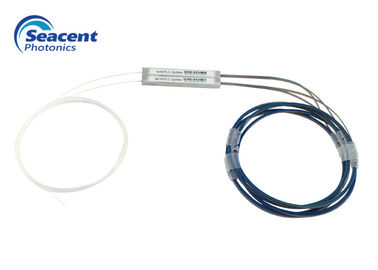

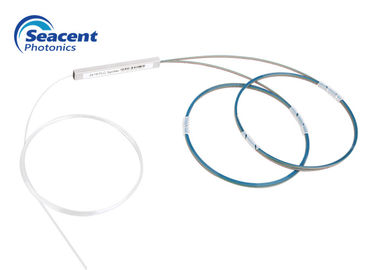

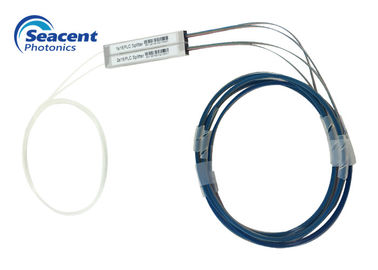

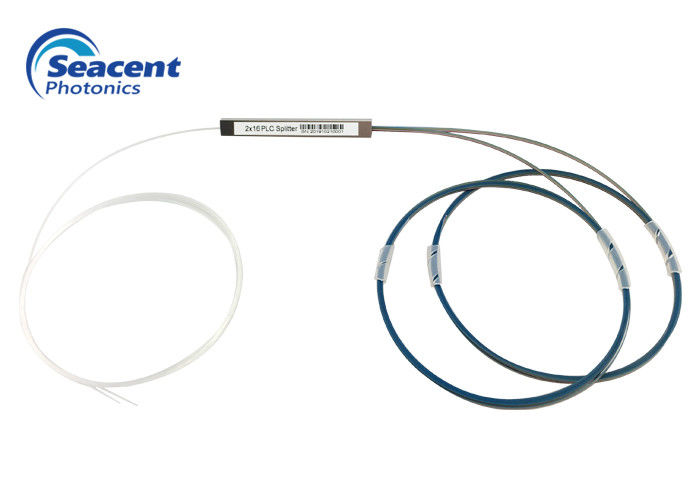

Fiber Optic PLC Splitter bare device 2x16 type 1m length customized

Seacen Photonics provides high optic performance PLC Splitter bare fiber. PLC is the abbreviation of Planar Lightwave Circuit, which is a planar optical waveguide. Unlike traditional Splitters, PLC Splitters are fabricated in a semiconductor process and can integrate different functional optical components onto a single chip. This is the basic process technology for integrating, modularizing and miniaturizing optoelectronic devices.

Product Features:

  • Low insertion loss

  • stable polarization

  • Low Polarization Dependent Loss
  • High stability and reliability
  • Good uniformity
  • Certified by Telcordia GR.1209 and GR.1221



Applications:

  • LAN, WAN & Metro Networks
  • Fiber to the home
  • Passive Optical Networks
  • PON-FTTX network
  • wired TV internet

Specifications:



Item Parameters

IL (dB)

13.8

Uniformity (dB)

≤1.5

PDL(dB)

≤0.3

RL (dB)

≥55

Directionality (dB)

≥55

Fiber length (m)

1.0m or customized

Working wavelength (nm)

1260-1650

Temperature stability (dB)

-40℃- 85℃(≤0.5)

Working temperature °C

-40℃- 85℃

Maximum power (nW)

1000







Ordering Information:



Product type

Fiber diameter

Inlet and fiber length

Package size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2         4x4x40 mm

 to           or

1x8         4x5x40 mm



1x12

 to            4x7x60 mm

1x32



1x48

 to             4x12x60 mm

1x64



1x128      6x20x80 mm
