Low Insertion Loss 1x8 127um Bare Device Optical Splitter

Minimum Order Quantity : Negotiable Price : Negotiable
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, D/P
Supply Ability : 100,000 pieces per month
Place of Origin: Shenzhen,China Brand Name: Seacent
Certification: ISO9001 , ROHS Model Number: 1x16 type bare device

Detail Information

Product Name: PLC Splitter Bare Device Insertion Loss: ≤13.5 DB
Return Loss: ≥55 DB PDL: ≤0.3 DB
Temperature Uniformity: ≤1.0 DB Working Temperature: -40℃--85℃
High Light:

plc fiber splitter

,

bare plc splitter

Product Description

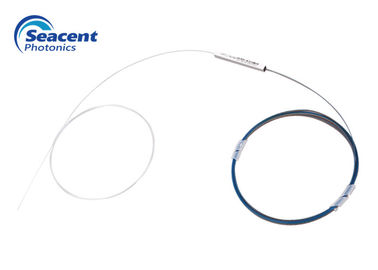

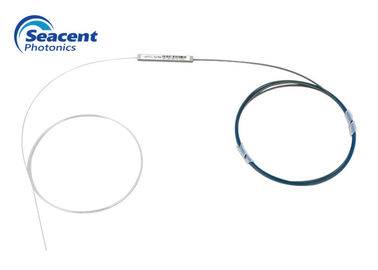

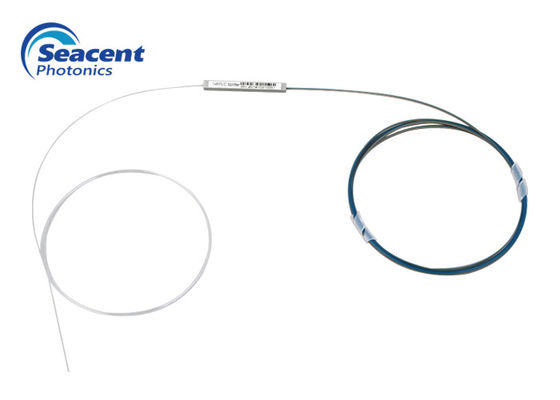

1x8 127um Fiber Optic PLC Splitter , Bare Device Optical Splitter

Fiber Optic PLC Splitter Features:

  • Low insertion loss
  • Stable polarization
  • Optical performance 100% factory tested
  • High stability and reliability
  • Excellent uniformity
  • Certified by Telcordia GR.1209 and GR.1221



Fiber Optic PLC Splitter Applications:

  • LAN, WAN
  • Metro Networks
  • FTTH
  • Test equipment
  • Passive Optical Networks
  • PON-FTTX network

Fiber Optic PLC Splitter Parameters:

Item Parameters

Insetion Loss

10.2 dB

Uniformity

≤0.8 dB

PDL

≤0.3 dB

Return Loss

≥55 dB

Directionality

≥55 dB

Length

1.0m or customized

Wavelength

1260-1650 nm

Stability

≤0.5 dB (-40℃- 85℃)

Working temperature

-40℃- 85℃

Maximum power

1000 nW



Ordering Information:

Product type

Fiber diameter

Inlet and fiber length

Package size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2         4x4x40 mm
 to           or
1x8         4x5x40 mm

1x12
 to            4x7x60 mm
1x32

1x48
 to             4x12x60 mm
1x64

1x128      6x20x80 mm


 PLC Splitter-Bare Device-Seacent Photonics .pdf
