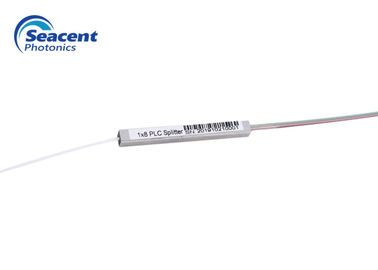

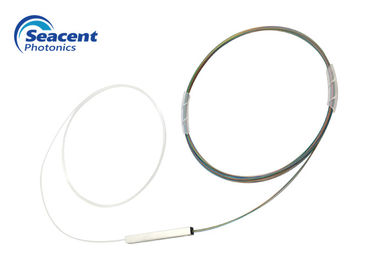

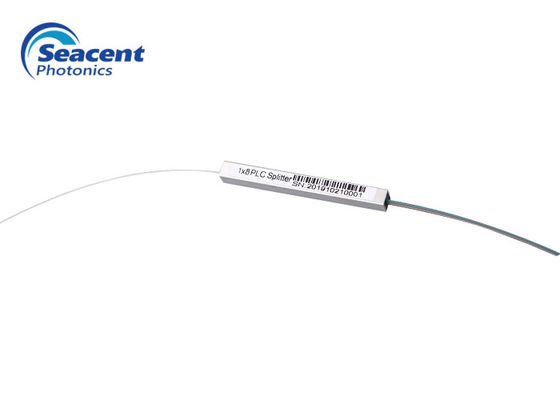

Bare Type 1x8 250um Fiber Optic PLC Splitter

Brand Name:	Seacent
Model Number:	1x8 type bare device
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO9001 , ROHS

Product Name:

PLC Splitter Bare Device

Insertion Loss:

≤13.5 DB

Return Loss:

≥55 DB

Working Temperature:

-40℃--85℃

Supply Ability:

100,000 pieces per month

Highlight:

plc fiber splitter

bare plc splitter

Product Description

1x8 250um Fiber Optic PLC Splitter , Bare Type Optical Splitter

Fiber Optic PLC Splitter Specification:

Seacent Photonics Fiber Optic PLC Splitter is designed for long-term reliability, superior performance, and a wide range of uses in optic network , including optical transmission, long haul, subscriber loop, and fiber to the home, telecommunications, CATV, test equipment, optical fiber sensors, data communications and wide-area network.

Fiber Optic PLC Splitter Features:

Optical performance 100% factory tested
High stability and reliability
Excellent uniformity
Certified by Telcordia GR.1209 and GR.1221

Fiber Optic PLC Splitter Applications:

LAN, WAN
Metro Networks
FTTH
Passive Optical Networks
PON-FTTX network

Fiber Optic PLC Splitter Parameters:

Item	Parameters
Insetion Loss	≤10.2 dB
Uniformity	≤0.8 dB
PDL	≤0.3 dB
Return Loss	≥55 dB
Directionality	≥55 dB
Length	1.0m or customized
Wavelength	1260-1650 nm
Stability	≤0.5 dB (-40℃- 85℃)
Working temperature	-40℃- 85℃
Maximum power	1000 nW

Ordering Information:

Product type

Fiber diameter

Inlet and fiber length

Package size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2 4x4x40 mm
to or
1x8    4x5x40 mm

1x12
to   4x7x60 mm
1x32

1x48
to    4x12x60 mm
1x64

1x128   6x20x80 mm

PLC Splitter-Bare Device-Seacent Photonics .pdf
