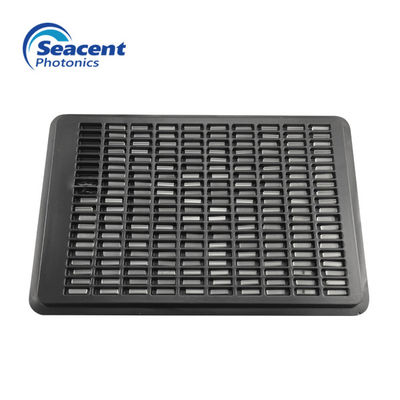

FTTH FTTB FTTX Network PLC Splitter Chip 1650nm 1X4 Single Mode
1x4 PLC Single mode splitter chips
Description:
PLC Splitter Chip is a main part of PON system to cover many demanders for receiving light signals at the same time by distributing delivered light signals into N number. In addition, Splitter Chip can be operated reverse direction with combination of one or two optical fiber(s).
PLC Splitter Chip is based on lithography technology to divide the optical power from one or two input port(s) into multiple output ports by Planar Lightwave Circuit technology. As one of the key components of PLC Splitter, Seacent Photonics ’s Chip has high photonicsstability and reliability.
Technical parameters: 1XN chip
parameter |
1X2 |
1X3 |
1X4 |
1X6 |
1X8 |
1X12 |
1X16 |
1X24 |
1X32 |
1X48 |
1X64 |
1X128 |
Working wavelength (nm) |
1260-1650 |
|||||||||||
Insertion loss (dB) |
3.5 |
5.8 |
6.7 |
8.8 |
9.8 |
11.8 |
12.9 |
15.1 |
16.2 |
18.4 |
19.5 |
22.5 |
Uniformity (dB) |
≤0.3 |
≤0.5 |
≤0.5 |
≤0.6 |
≤0.6 |
≤0.8 |
≤0.8 |
≤1.1 |
≤1.0 |
≤1.2 |
≤1.2 |
≤1.5 |
PDL (dB) |
≤0.12 |
≤0.12 |
≤0.12 |
≤0.12 |
≤0.15 |
≤0.15 |
≤0.15 |
≤0.15 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.3 |
Technical parameters:2XN chip
parameter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | 2X128 |
Working wavelength (nm) | 1260-1650 | ||||||
Insertion loss (dB) | 3.7 | 7.0 | 10.2 | 13.5 | 16.7 | 20.0 | 22.8 |
Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.2 | ≤1.2 | ≤1.8 | ≤2.0 |
PDL (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 |
product features:
Product application areas:
Ordering Information:
product type |
Wafer size |
1XN chip size (mm) |
2XN chip size (mm) |
1XN或2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
1=6 Inch |
1x2 = 2.3x2.0x9.6 1x3 =2.3x2.0x9.6 1x4 = 2.3x2.0x9.6 1x5 =2.3x2.0x9.9 1x7 =2.3x2.0x9.9 1x8 = 2.3x2.0x9.9 1x12 = 2.3x2.0x14.7 1x16 = 2.65x2.0x13.3 1x24 = 3.9x2.0x20.3 1x32 =4.7x2.0x16.9 1x64 =8.85x2.0x22.0 1x128=17.0x2.0x27.6 |
2x2 = 2.3x2.0x10.9 2x4 = 2.3x2.0x14.0 2x8 = 2.3x2.0x15.0 2x16 = 2.7x2.0x18.3 2x32 =4.7x2.0x21.8 2x64 =8.85x2.0x26.8 2x128=17.0x2.0x32.8 |
