Optical Fiber Array
>
fiber array pigtail 2CH G657A1 0.5M length

fiber array pigtail 2CH G657A1 0.5M length

Brand Name: Seacent
Model Number: pigtail 2CH
MOQ: 10pcs
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Guangdong,China
Certification:
ISO9001 , ROHS
Fiber Type:
2.0mm,G657A Or G652,0.9mm,SMF-28e,PM980
Material:
Quartz,Pyrex,Metal,Silicon,Silicon Glass Or Zirconia
Certification:
CE,CPR Etc.,ROHS,CE RoHS FCC,ISO9001
Connector:
SC,FC,LC,ST,LC Fiber Patch Cord And So On
Ferrule Polish:
PC,UPC,APC
Packing:
Inner Box And Export Carton,Polybag
Highlight:

plc fiber array

,

fiber optic array

Product Description

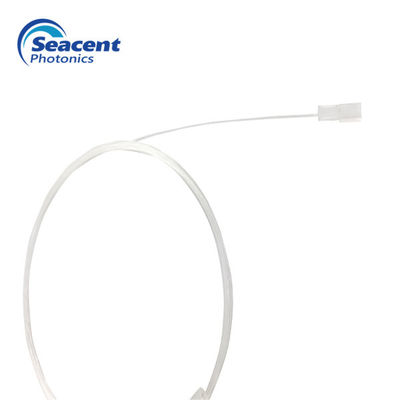

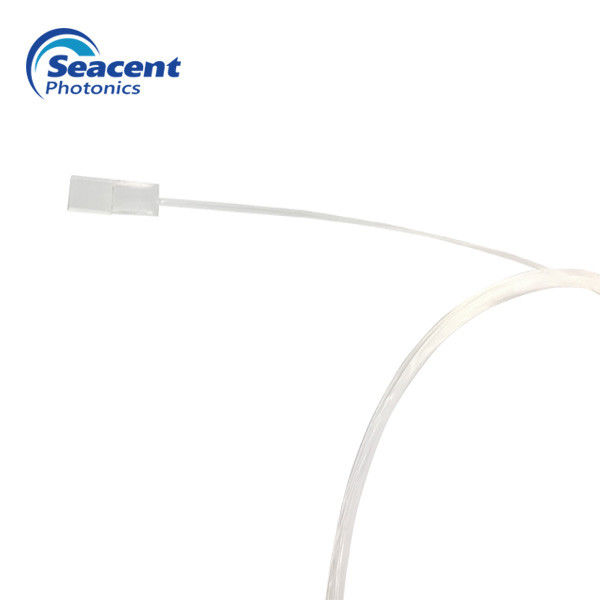

Fiber array pigtail 2CH G657A1 0.5M length

Description:

We provide unique assembly/cutting/polish processes to get the best accuracy of fiber core position with the perfect Polishing surface. Fiber array is an essential component used in different applications to connect the optical fiber to its waveguide.



Features:

PM, SM, MM Fibers

Low insertion loss and low PDL

High precision and high reliability

Compact dimension

Any length optical fibers and custom fiber spacings



Applications:

Switches

Interferometry

Optical sensors

Integrated components

Multiplexers / Demultiplexers

Connection to waveguide devices



Specification:

fiber length from few centimeters to several hundred meters
fiber type PMF,MMF,SMF or custom
polishing angle 0+/-0.5;8+/-0.5;custom
fiber position accuracy +/-1um(x and axis)
connectors FC,LC,SC,ST,SMA,MU,E2000,other
fiber spacing upon request
fiber quantity upon request


 V-groove base plate dimension table:

  L W H X Y comprehensive error
type size common difference size common difference size common difference size common difference core height difference R=√ x2+y2
2CH 250 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 <0.1
4CH 250 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 <0.1
8CH 250 10 ±0.3 3.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 <0.1
8CH 127 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
16CH 127 10 ±0.3 3.5 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
32CH 127 10 ±0.3 5.7 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
48CH 127 12 ±0.3 7.8 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
64CH 127 12 ±0.3 9.8 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
96CH 127 12 ±0.3 16 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
128CH 127 12 ±0.3 20 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 0.1





Ordering Information:

Product number

Fiber type

Fiber length

01=1CH

02=2CH

03=4CH

04=8CH

05=12CH

06=16CH

07=24CH

08=32CH

09=48CH

10=64CH

11=96CH
12=128CH

1=G657A1

  2= G657A2

3=G652D

4=G652B

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M
S=Customized
