| Brand Name: | Seacent |
| Model Number: | 1x12 type bare device |
| MOQ: | 1 piece |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 100,000 pieces per month |

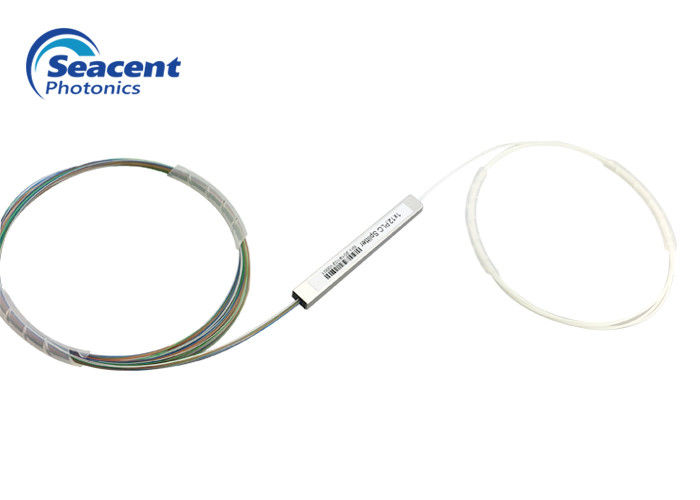

Fiber Optic PLC Splitter bare fiber 1x12 type G657A1 in optical network
Seacent Photonics offers 7 types of high-quality splitters , including bare fiber, micro type, ABS box, FTTH insert type ,Tray type Brancher and rack mount. These products are designed for long-term reliability, superior performance, and a wide range of uses in fiber optics including optical transmission, long haul, subscriber loop, and fiber to the home, telecommunications, CATV, test equipment, optical fiber sensors, data communications and wide-area network. Our optical splitters are designed for consistent performance, low optical loss, low polarization sensitivity, superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks.
Product Features:
Low loss and stable polarization
Applications:
Specifications:
| Item | Parameters |
|
Insertion Loss |
≤12.5 dB |
|
Uniformity |
≤1.0 dB |
|
PDL |
≤0.3 dB |
|
Return Loss |
≥55 dB |
|
DIR |
≥55 dB |
|
Length |
1.0m or customized |
|
Testing wavelength |
1260-1650 nm |
|
Temperature stability |
-40℃- 85℃ (≤0.5 dB) |
|
Working temperature |
-40℃- 85℃ |
|
Maximum power |
1000 nW |
Ordering Information:
|
Product type |
Fiber diameter |
Inlet and fiber length |
Package size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0148=1X48 0164=1X64 1128=1X128 |
1=250um 2=900um |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized |
1x2 4x4x40 mm to or 1x8 4x5x40 mm
1x12 to 4x7x60 mm 1x32
1x48 to 4x12x60 mm 1x64
1x128 6x20x80 mm |
|
|
