0.9mm 0.5m Cassette PLC Splitter 1x8 Plug In SC APC Connector

Minimum Order Quantity : 1 piece Price : USD 3.6-4.88 per piece
Delivery Time : 5-8 work days Payment Terms : L/C, T/T
Supply Ability : 100,0000 pieces per months
Place of Origin: Guangdong , China Brand Name: Seacent
Certification: ISO9001, ROHS Model Number: 1x8 insertion type

Detail Information

Product Name: Fiber Optic PLC Splitter Type: 1*2/1*4/1*8/1*16/1*32/1*64
Insertion Loss: 10.8 DB Return Loss: ≥55 DB
Connector: SC/APC Operating Temperature: -40°C - 85°C
High Light:

0.9mm Cassette PLC Splitter 1x8

,

0.5m Cassette PLC Splitter

,

PLC Splitter 1x8

Product Description

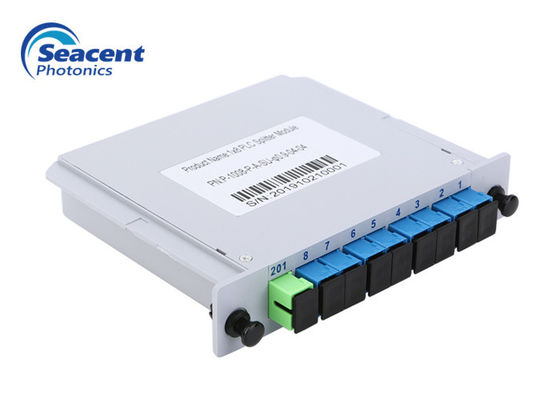

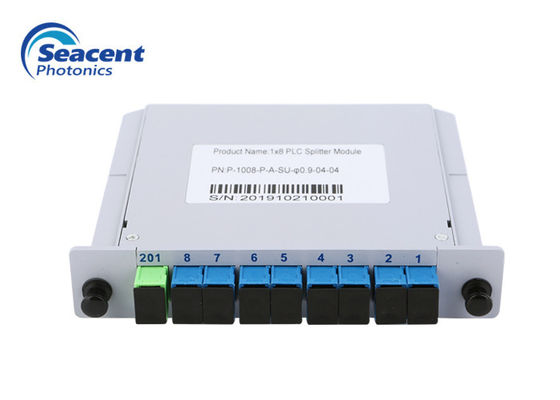

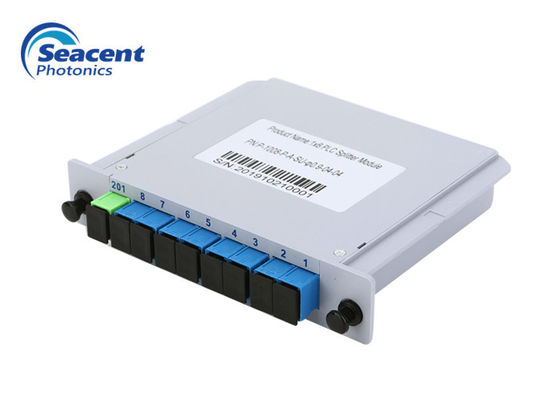

0.9mm 0.5m Cassette PLC Splitter 1x8 Plug In SC APC Connector



Seacent Photonics provides a various of 1xN and 2xN plug-in PLC splitters, including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 bare fiber type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 bare fiber type PLC splitters.





Features:

  • Compact design
  • Low insertion loss
  • Stable polarization
  • Excellent channel uniformity
  • High stability and reliability
  • Certified by Telcordia GR.1209 and GR.1221



Application:

  • Fiber to the home (FTTH)
  • FTTB
  • wired TV internet
  • Passive optical network (PON)
  • PON-FTTX network





Specifications:

Item Parameter

IL (dB)

10.8

Uniformity (dB)

≤0.8

Polarization dependent loss (dB)

≤0.25

RL (dB)

≥55

Directionality (dB)

≥55

Fiber length (m)

1.0 or customized

Working wavelength (nm)

1260-1650

Fiber type

G657A1 or customized

Temperature stability (dB)

-40℃- 85℃(≤0.5)

Working temperature °C

-40℃- 85℃





Ordering information:

Product type

Inlet and exit diameter

Inlet and fiber length

Insert box size

1XNor 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0164=1X64

2=0.9mm

0=0.5M

S=Customized

1x2

 to       130x100x25 mm

1x8



1x12

 to       130x100x50 mm

1x16



1x24

 to        30x100x102 mm

1x32



1x64     130x100x206 mm
