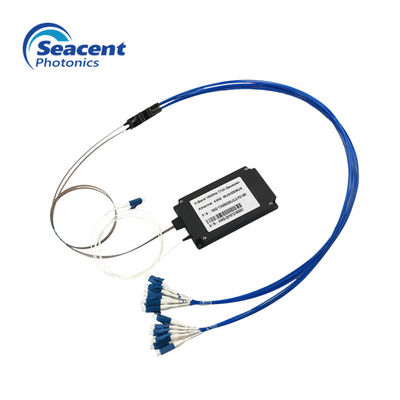

O Band 17CH 150GHZ AAWG Module Low Insertion Loss With LC / UPC Connector

Name: O Band 17CH 150GHZ AAWG Module Low Insertion Loss With LC / UPC Connector
Brand: Seacent
SKU: AAWG-17CH 150GHZ
Rating: 4.6 (174 reviews)

Brand Name:	Seacent
Model Number:	AAWG-17CH 150GHZ
MOQ:	1
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

ISO9001,ROHS

Product Name:

Athermal Awg Dwdm Module

Color:

Black,Blue,Orange,White

Channel:

17CH,40CH,48CH,80CH,96CH Or Customized

Connector:

LC/UPC,LC,ST,FC,SC

Warranty:

3 Years

Application:

Metro And Long Haul Network,FTTH FTTB FTTX Network

High Light:

awg arrayed waveguide grating

optical mux demux

Product Description

O Band 17CH 150GHZ AAWG Module Low Insertion Loss With LC / UPC Connector

Description:

Athermal AWG s allow multiplexing and demultilexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics. These AWGs offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package.

This kind of Athermal AWG (Arrayed Waveguide Grating) is a high performance DWDM mux/demux device operating on 100GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths.

Our thermalization technology simplifies the deployment of AWG multiplexers/demultiplexers by DWDM network providers.

Features:

Flat-top Passband
Fully Passive Module
Low Crosstalk
High Uniformity
Low Insertion Loss,Low PDL,High Channel Isolation
40 Channels x 100GHz Mux/Demux
Operating Temperature Range from -5ºC to 65ºC
No Electronics Required; Compact Footprint
Telcordia GR-1209/GR-1221 Qualified.

Application:

WDM based ADM
WDM transmission
Metro and long haul networks
Optical signal processing
LAN, WAN and Metro Networks

Technical Parameters

Parameter		Unit	Value
Pass Band Type		-	Flat-top	Gaussian
Channel Spacing		GHz	100
Channel Number		CH	48/40
Wavelength Accuracy		nm	±0.05
1dB Pass Band		nm	≥0.38	≥0.2
3dB Pass Band		nm	≥0.58	≥0.4
Insertion Loss1		dB	≤6.0 Typ.4.5	≤3.5 Typ.2.8
Ripple		dB	≤0.5	≤1.5
Uniformity		dB	≤1.5	≤1.5
Adjacent Crosstalk		dB	≥23	≥26
Non-adjacent Crosstalk		dB	≥29	≥35
Total Crosstalk		dB	≥21
Polarization Dependent Loss(PDL)		dB	≤0.5 Typ.0.25	≤0.7 Typ.0.35
PMD2		ps	≤0.5
Chromatic Dispersion2		ps/nm	±20
Return Loss		dB	≥40
Fiber	Input Port	mm	Φ0.9
	Output Ribbon	-	-
	Fan Out	mm	Φ0.9
Operation Temperature		℃	-5～+65
Storage Temperature		℃	-40～+85
Package		mm	120×70×11

Notes:

1. All specifications are based on the devices without connectors and guaranteed over wavelength, polarization, and temperature.

2. PMD and chromatic dispersion values are guaranteed by design.

Tags:

athermal awg

awg arrayed waveguide grating

optical mux demux
