| Brand Name: | Seacent |
| Model Number: | Fiber Array-12CH |
| MOQ: | 10pcs |
| Payment Terms: | L/C, T/T |

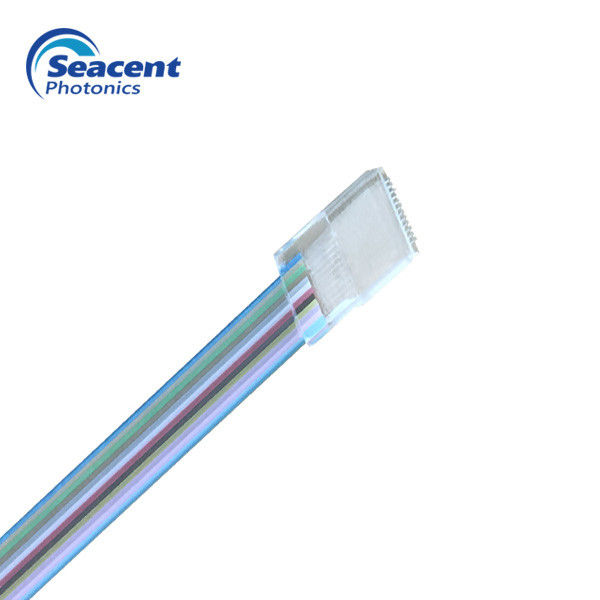

The fiber array manufacture is based on placing fiber in the high precision V-Groove Chip with another flat V-Groove Lid on top of it. The end face of the fiber array is optically polished, and on request available also with an antireflection coating (ARC).
Fiber Optic Arrays are manufactured and tested to the most rigorous industry standards. Their optical and mechanical performance meets IEC specifications and customer specified requirements.
Low Insertion Loss
High Return Loss
Wide Operation Temperature
High Stability and Reliability
High accuracy of fiber core position
PLC Devices
Splitters
AWG
Coupler
Active/passive array fiber optic device
| Item | Parameter |
| Material | Quartz glass, borosilicate, silicon |
| Number of channels | 1CH ~ 128CH |
| Core distance/tolerance(μm) | 250, 127 / 0.7 |
| Fiber length (m) | 2.0±0.1 |
| Polishing angle ( ° ) | 0,+8, -8 (±0.3) |
| Polishing flatness | ﹤ 5 fringes@633nm |
| Fiber type | SMF-28e or SMF-28e XB |
| Operating temperature(℃) | -40~+85 |
V-groove base plate dimension table:
| L | W | H | X | Y | comprehensive error | ||||||
| type | size | common difference | size | common difference | size | common difference | size | common difference | core height difference | R=√ x2+y2 | |
| 2CH 250 | 10 | ±0.3 | 2.5 | ±0.05 | 2.5 | ±0.05 | 0.25 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 4CH 250 | 10 | ±0.3 | 2.5 | ±0.05 | 2.5 | ±0.05 | 0.25 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 8CH 250 | 10 | ±0.3 | 3.5 | ±0.05 | 2.5 | ±0.05 | 0.25 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 8CH 127 | 10 | ±0.3 | 2.5 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 16CH 127 | 10 | ±0.3 | 3.5 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 32CH 127 | 10 | ±0.3 | 5.7 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 48CH 127 | 12 | ±0.3 | 7.8 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 64CH 127 | 12 | ±0.3 | 9.8 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 96CH 127 | 12 | ±0.3 | 16 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 128CH 127 | 12 | ±0.3 | 20 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
Ordering Information:
| Product number | Fiber type | Fiber length |
|
01=1CH
02=2CH
03=4CH
04=8CH
05=12CH
06=16CH
07=24CH
08=32CH
09=48CH
10=64CH
11=96CH
12=128CH
|
1=G657A1
2= G657A2
3=G652D
4=G652B
|
0=0.5M
1=1.0M
2=1.5M
3=2.0M
4=2.5M
S=Customized
|
|
