Cassette PLC Splitter
>

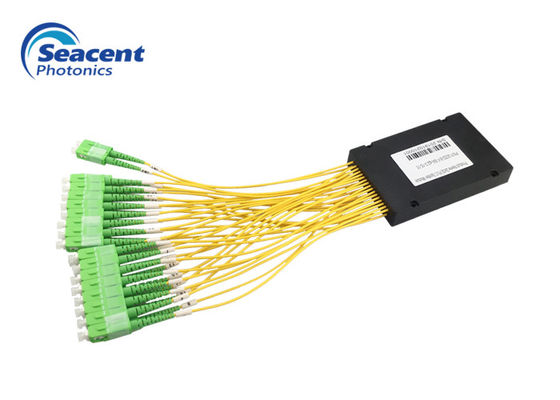

Low Insertion Loss Abs Box Plc Splitter 2.00mm 2x32 Optical Splitter

Low Insertion Loss Abs Box Plc Splitter 2.00mm 2x32 Optical Splitter

Brand Name: Seacent
Model Number: 2X32 ABS Box
MOQ: 1 piece
Price: USD 12.98-24.98 per piece
Payment Terms: L/C, T/T
Supply Ability: 100,000 pieces per month
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001,ROHS
Product Name:
Fiber Optic PLC Splitter
Application:
FTTH FTTB FTTX PON CATV
Insertion Loss:
17.1 DB
Return Loss:
≥55 DB
PDL:
≤0.3 DB
Connector Type:
SC APC
Supply Ability:
100,000 pieces per month
High Light:

Abs Box Plc Splitter

,

2x32 optical splitter box

,

2x32 Optical Splitter

Product Description

Low Insertion Loss Abs Box Plc Splitter 2.00mm 2x32 Optical Splitter



Seacent Photonics provides a series of 1xN(N=2,3,4,6,8,12,16,24,32,48,64,128) and 2xN(N=2,4,8,16,32,64) Fiber PLC Splitter ABS type which feature low insertion loss, good channel-to-channel uniformity, wide operating wavelength range, excellent environmental stability, and now they're widely used in PON networks to realize optical signal power splitting as a low-cost solution.



Features:

  • Low insertion loss
  • High reliability
  • 2 Input Fibers
  • 32  Output Fibers
  • Low Polarization Dependent Loss
  • Good channel uniformity
  • good channel-to-channel uniformity
  • Telcordia GR.1209 and GR.1221



Application:

  • Fiber to the home (FTTH)
  • Passive optical network (PON)
  • wired TV internet
  • FTTB
  • PON-FTTX network
  • Local area network (LAN)
  • Gigabit Passive Optical Networks (GPON)



Specifications:

Item Parameter

IL

17.1 dB

RL

≥55 dB

PDL

≤0.3 dB

Uniformity

≤1.5 dB

Directionality

≥55 dB

Fiber type

G657A1 or customized

Fiber length

1.0m or customized

Working wavelength

1260-1650

Temperature stability

≤0.5 dB

Working temperature

-40℃- 85℃

Note: The above IL is without the connector parameters.

          2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.



Ordering information:

product type

Inlet and exit diameter

Inlet and fiber length

ABS box size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0164=1X64

1128=1X128

2=2.0mm

3=3.0mm

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=customized

2x2       100x45x10 mm

  to         or

2x8       100x80x10 mm



2x12      100x80x10 mm

  to           or

2x32      120x80x18 mm



2x64

  to         141x115x18 mm

2x128
